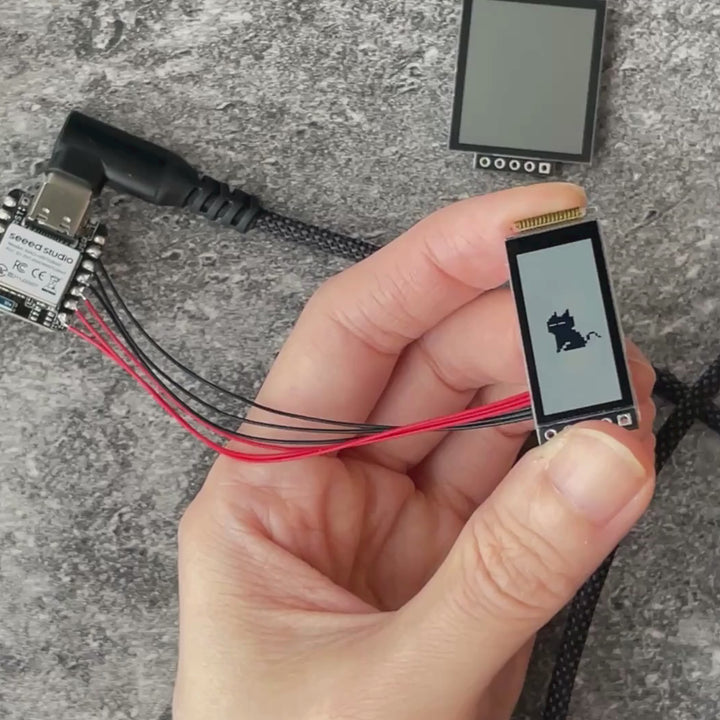

Memory-in-pixel LCD Display Module 1.26" / 1.08" (1pc)

Features

• Includes Breakout Board: You can easily integrate the display module into your keyboard using either a DF52 cable or a 5-pin header.
• ZMK Compatible: The MIP display can show information such as layer status and WPM. It also supports animations, enhancing both the convenience and aesthetics of your keyboard.
• Sample Firmware: https://github.com/beekeeb/zmk-keyboard-displaydemo
• Low Power Consumption: Its power-saving design makes it suitable for battery-powered wireless keyboards.
• Smooth Display: Unlike E-ink displays, it features minimal ghosting and enables smooth screen refreshes.

Important Notes

• If using the DF52 cable, please do not use the 5-pin module header.
• If using the 5-pin module header, please do not use the DF52 cable.
• Do not connect the DF52 cable and the 5-pin module header simultaneously.

The module includes

• Sharp Memory in Pixel (MIP) LCD Display

1. 1. Model A 1.26"
      • Model: LS013B7DH05
      • Dot Configuration H × V (dots): 144 x 168
      • Active Display Area H × V (mm): 20.88 x 24.36
      • Diagonal Screen Size: 1.26"
      • Display Color: Black & White
      • Outline Dimensions W × H (mm): 24.68 × 30.00
   2. Model B 1.08"
      • Model: LS011B7DH03
      • Dot Configuration H × V (dots): 160 × 68
      • Active Display Area H × V (mm): 25.28 × 10.744
      • Diagonal Screen Size: 1.08"
      • Display Color: Black & White
      • Outline Dimensions W × H (mm): 32.00 × 14.00

• Breakout board
• DF52 6-pin cable
• 5-pin header for module
• 5-pin socket for module

Warning

• This module is exclusively for 3.3V use. Absolutely do not apply 5V, as this will cause damage to the components.
• This module is not compatible with the Toucan keyboard. If you need a replacement display for your Toucan, please contact us.
