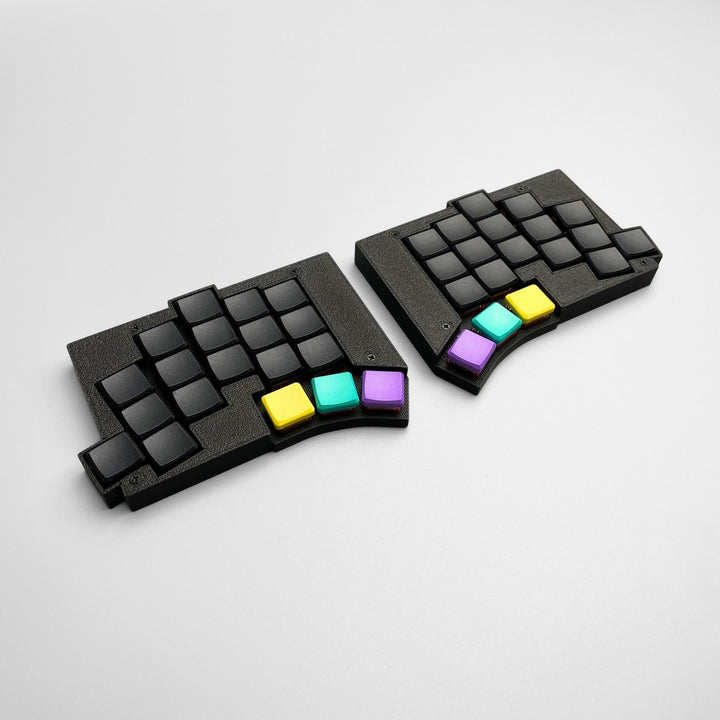

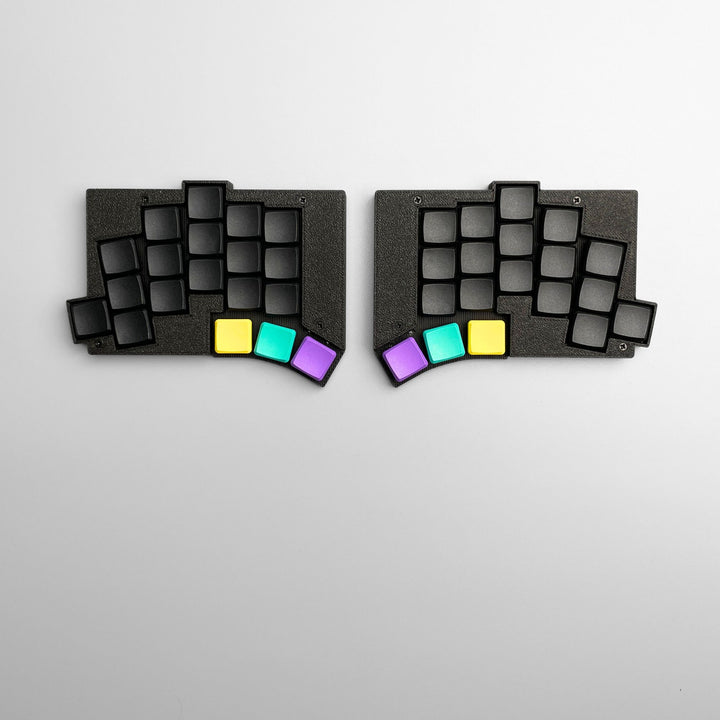

Pre-soldered Wireless TOTEM 38 keys Low Profile Choc Bluetooth Split Keyboard
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The prebuilt TOTEM Wireless keyboard

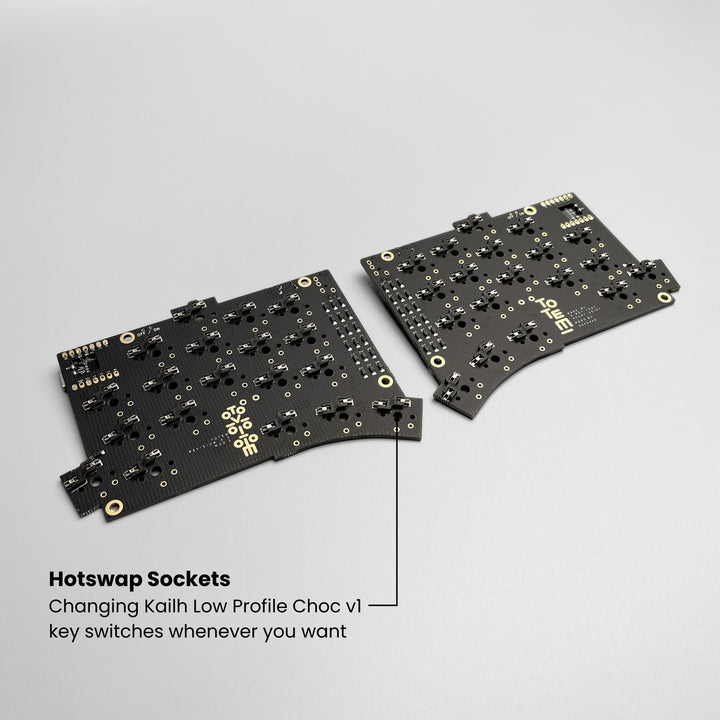

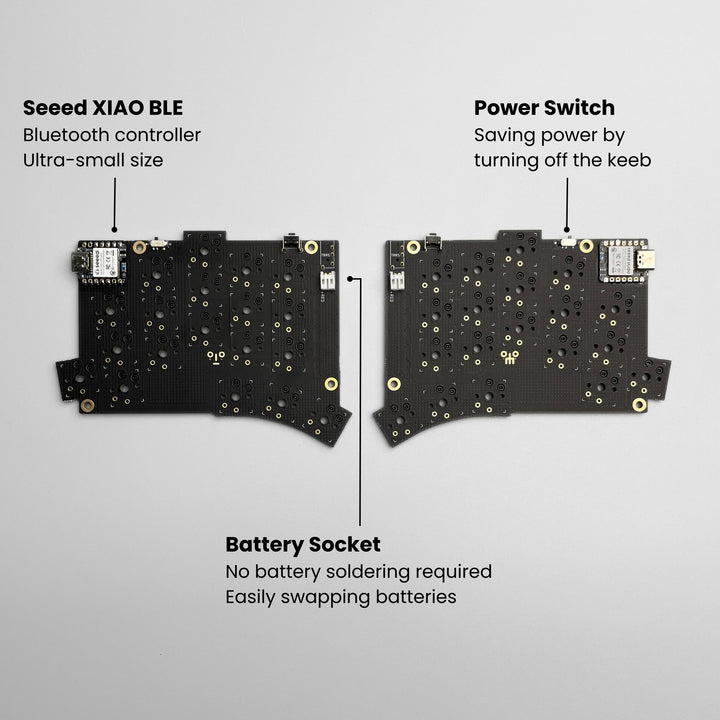

- No soldering tool is required. The components (SEEED XIAO BLE controllers, battery sockets, power switches, Kailh Choc v1 hotswap sockets, reset buttons and diodes) are pre-soldered on the board. You do not need any soldering tool to build this keyboard.

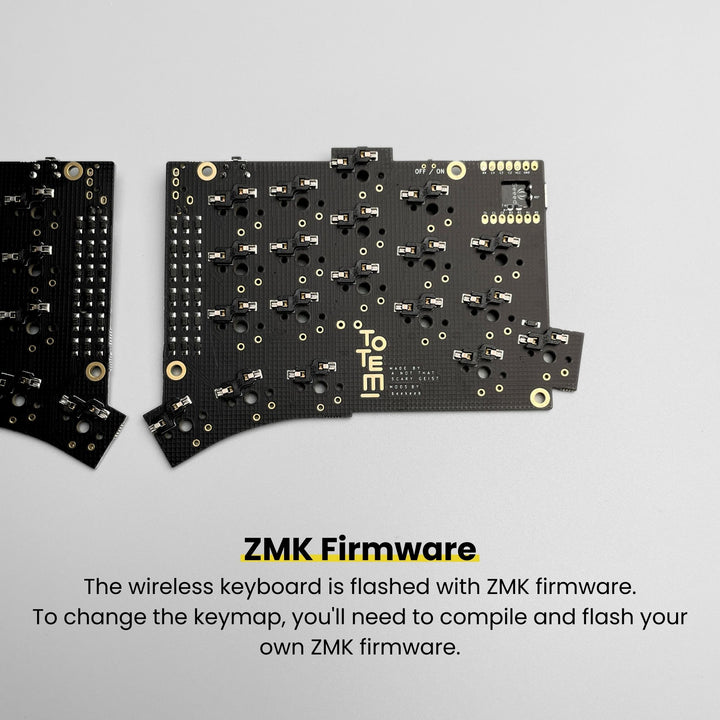

- Preflashed with ZMK firmware.
Important

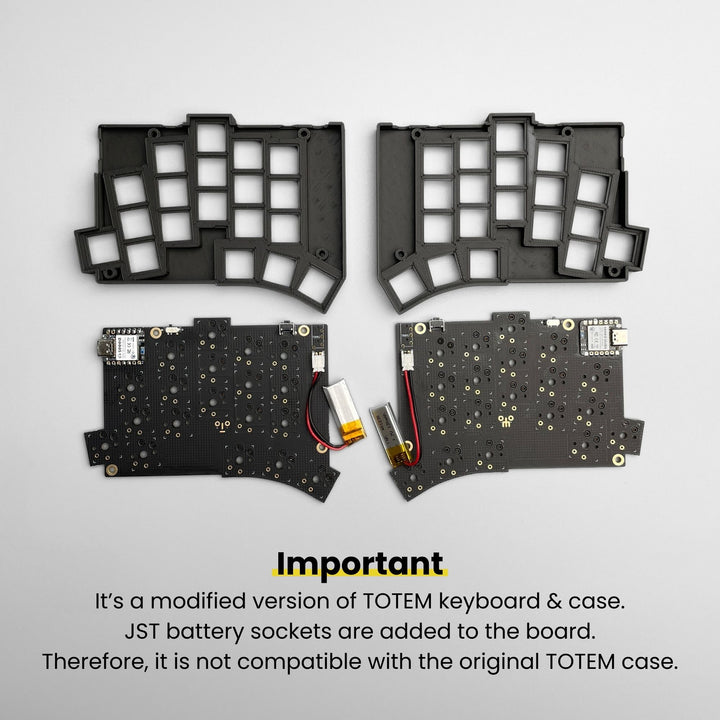

- It’s a modified version of TOTEM keyboard & case. JST battery sockets are added to the board. Therefore, it is not compatible with the original TOTEM case.

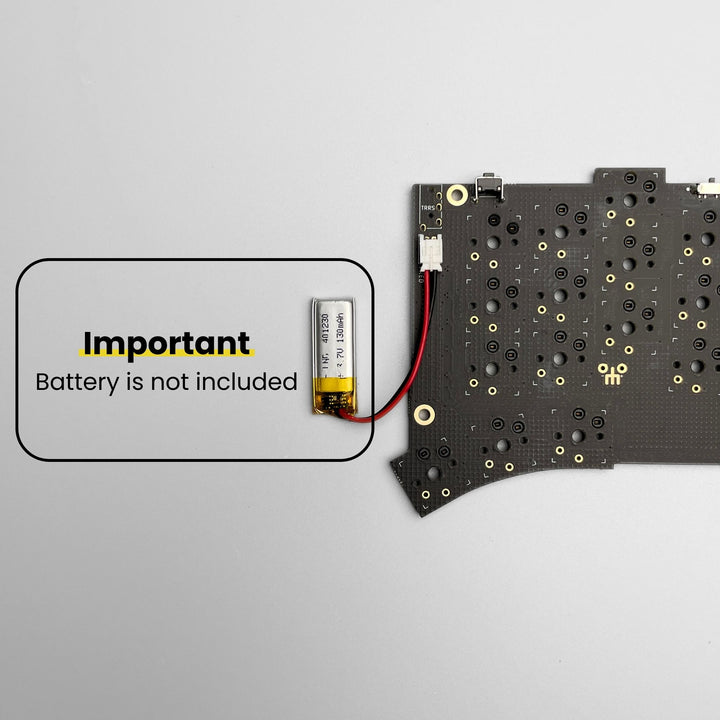

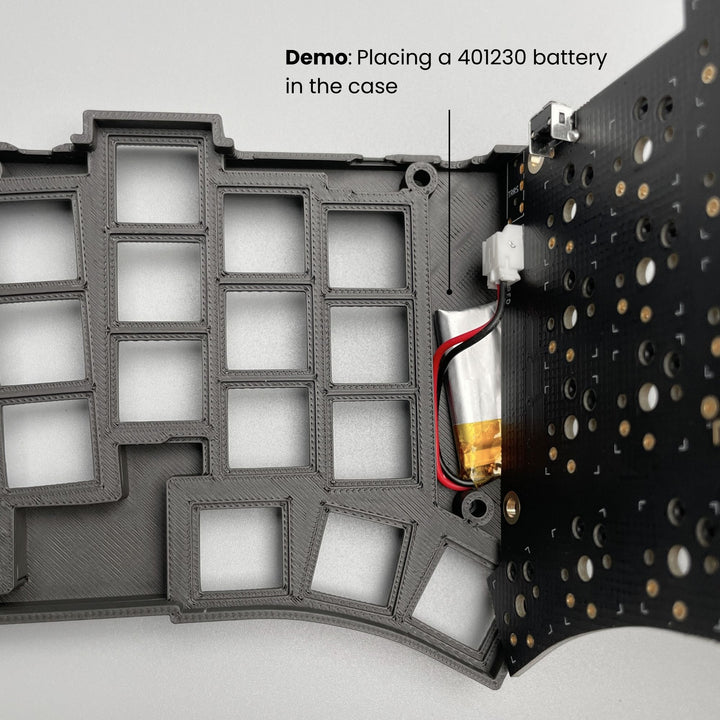

- Because I cannot ship batteries, please buy a pair of 301230 or 401230 batteries with JST-PH connectors and correct polarity from local stores.
- It is a wireless keyboard and cannot be used as wired keyboard. To configure the keymap, you will need to compile your own ZMK firmware using command line tools or GitHub Actions.
- If you select a case, you will need a screwdriver to assembled the case.
Original Project & License: https://github.com/GEIGEIGEIST/TOTEM
