Redox Wireless Hotswap Redox-W Rev 2.0WHS PCB Set

Introduction

The Redox is a keyboard project designed with ergonomics in mind. It uses Cherry MX style mechanical switches laid out in a 7×5 columnar stagger layout with components that can easily be sourced. The design was heavily inspired by the Ergodox keyboard, and its main goal is to reduce the size without sacrificing too many keys, hence the name Reduced Ergodox.

• 70 keys
• vertically staggered

• 70 keys (same as Redox v1)

• support MX hotswap sockets

• wireless keyboard that uses CR2032 battery

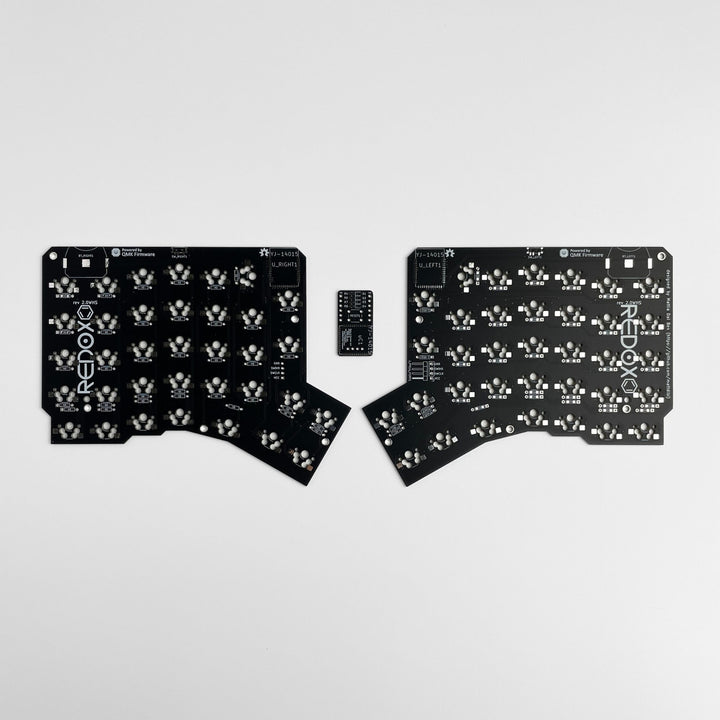

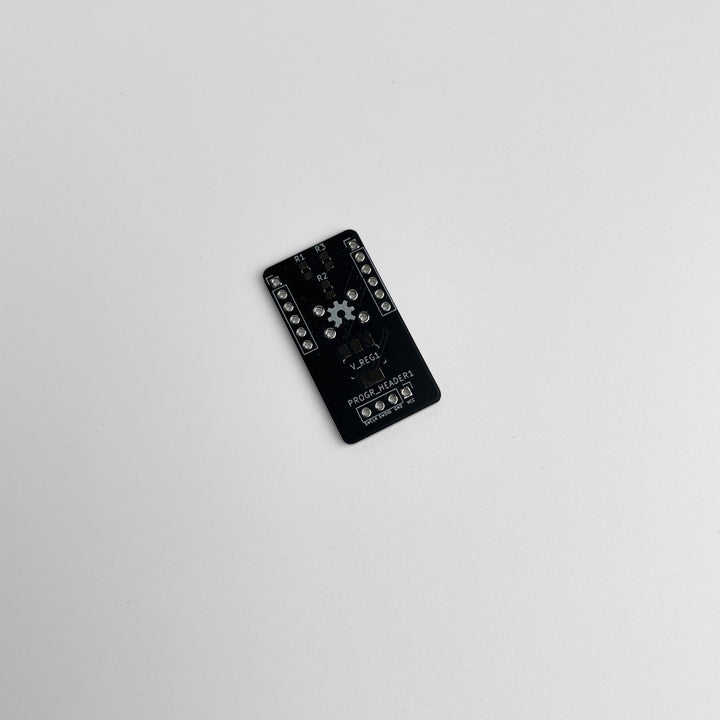

This contains the dongle PCB, left side and right side PCBs.
No components are included.

License and source code: https://github.com/mattdibi/redox-keyboard
