Corne Ultra Light
10

Pre-soldered Wireless Corne Keyboard – Corne UltraLight 42 / 36 Keys Split Keyboard

USD $229.00

  • 36 / 42 keys
  • Built for wireless usage
  • On board battery connectors and power switches

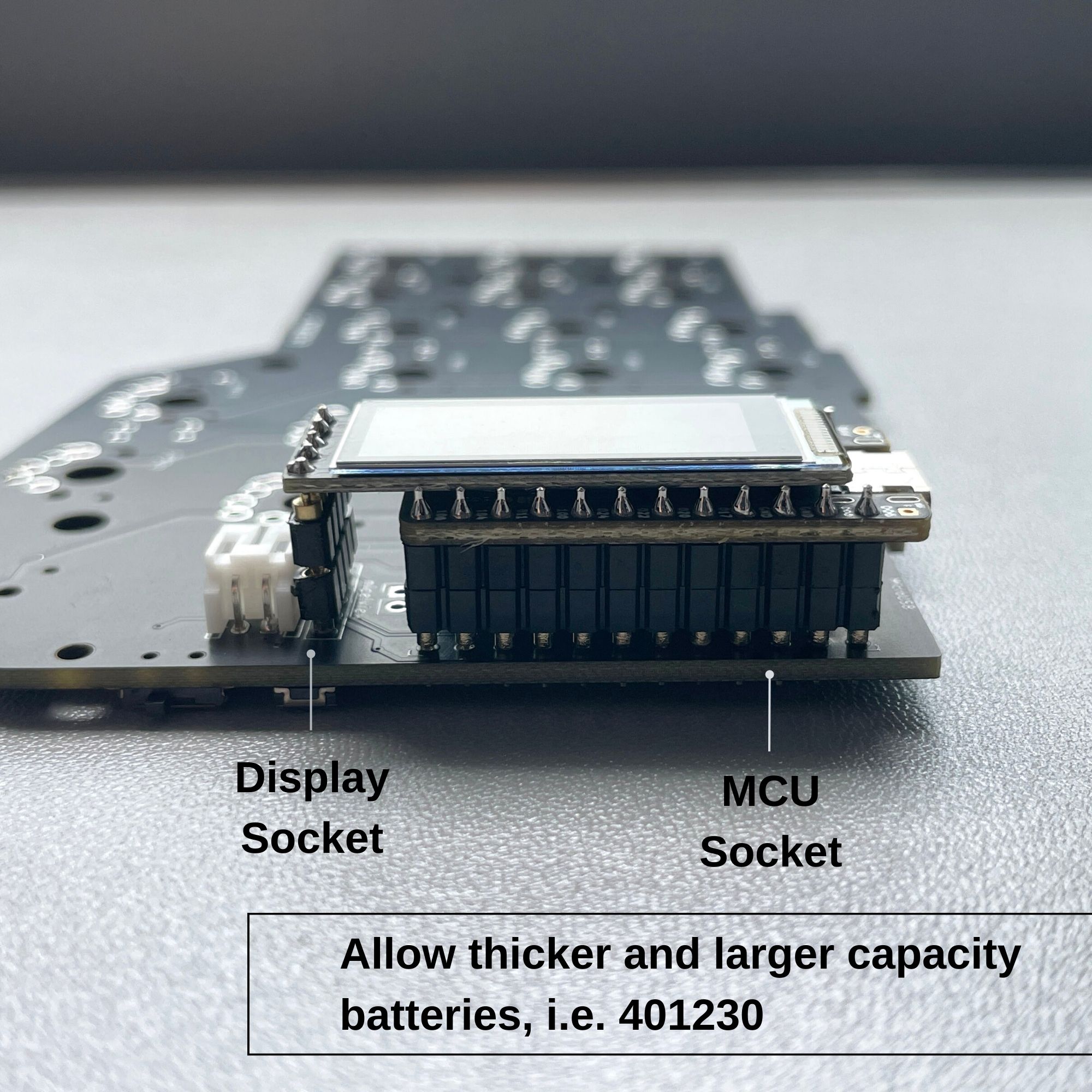

  • Socketed controllers and displays – allowing thicker and larger capacity batteries placing under the controllers
  • Using power saving components
  • Support low profile Kailh Choc v1 / mid profile Gateron KS-33 / Cherry MX key switches
  • Pre-flashed ZMK firmware

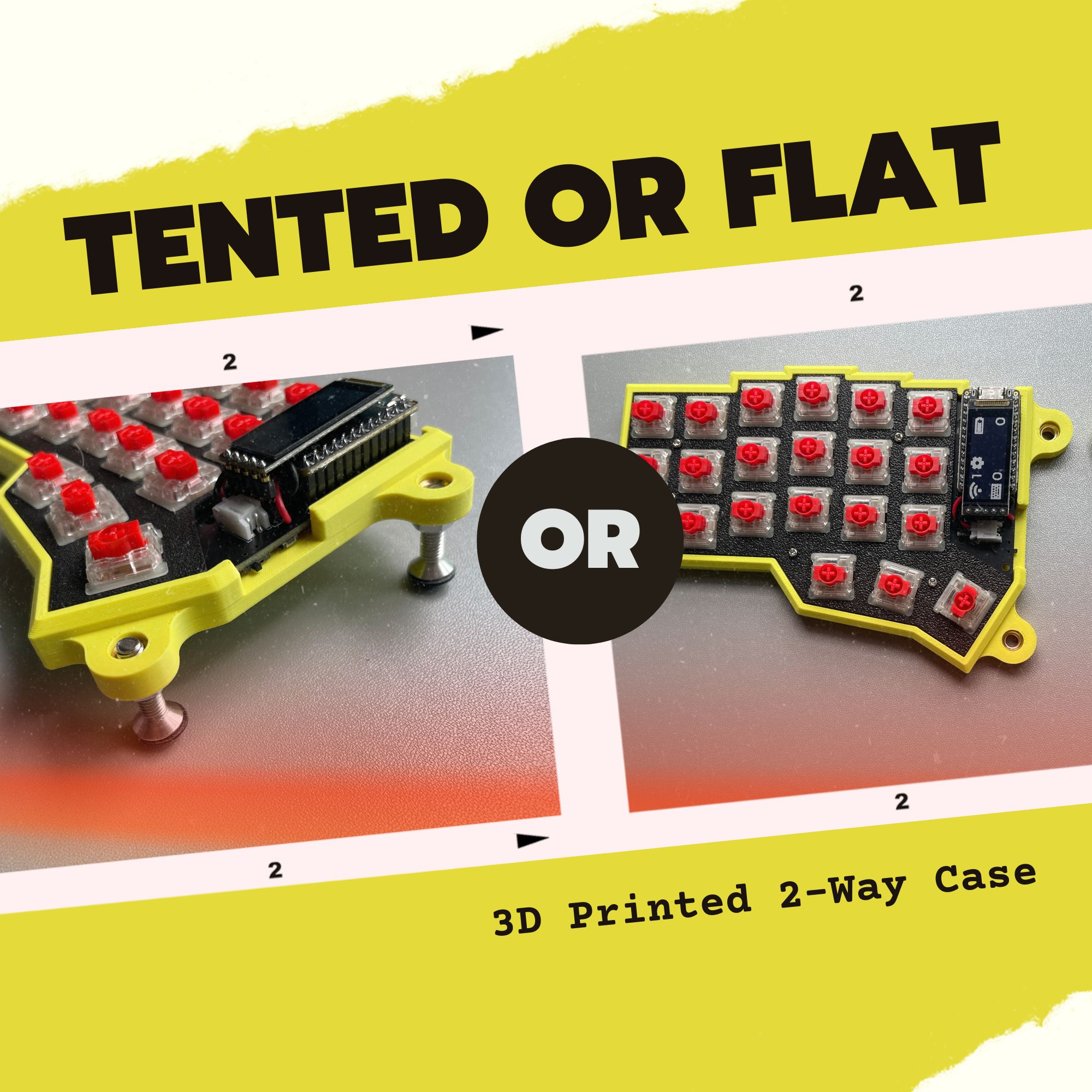

  • With a 3D Printed 2-Way (Tented / Flat) Case

Free worldwide shipping on orders over $40

The pre-built Wireless Corne keyboard includes:

  • All the components will be soldered to the PCB, included nice!nano, (optional) nice!view display, diodes, key switches, power switches and reset buttons.
  • The selected key switches will be soldered to the board.
  • Because the key switches are soldered-in the board. The keyboard case will be included and the top plates are not removable.
  • Pre-flashed ZMK firmware

The case includes:

  • A pair of top plates
  • A pair of OLED transparent covers
  • A pair of 3D printed bottom case that supports using with or without tenting legs
  • A set of tenting legs
  • Spacers and screws
  • Rubber feet

Custom order:

  • If you have a special request, please message me for a custom order.
  • If you would like to use MX key switches / Gateron KS-33 key switches in the build. Please message me for a custom order. I have some Gateron MX clear key switches and Gateron KS-33 Red linear key switches.

Important notes:

  • Because I cannot ship batteries, please buy a pair of 301230 or 401230 batteries with JST-PH connectors and correct polarity from local stores.
  • This Corne variants doesn’t support RGB LEDs and hotswap sockets.
  • It is a wireless keyboard and cannot be used as wired keyboard.
  • DSA keycaps can be used with the mid-profile Gateron KS-33 key switches.
  • To configure the keymap, you will need to compile your own ZMK firmware using command line tools or GitHub Actions.
  • The case and keycaps require DIY assembly by hand and a screwdriver.

Source & License: https://github.com/beekeeb/crkbd/tree/corne-ultralight-b

Additional information

Switch

, ,

Number Of Keys

36 Keys, 42 Keys

Display

No Display, nice!view display

Key Switch

, , , , , , ,

Keycap

, , , , ,

Switch Plate / Top Plate

Carbon Fiber, 3D Printed Black, 3D Printed White, 3D Printed Red, 3D Printed Navy Blue, 3D Printed Neon Yellow, 3D Printed Limed Ash Green, No Top Plate (for DIY soldering key switches only)

Bottom 3D Printed Case

3D Printed Black, 3D Printed White, 3D Printed Red, 3D Printed Navy Blue, 3D Printed Neon Yellow, 3D Printed Limed Ash Green, No Bottom Case
