Corne v3.0 Choc Low Profile Split Wired Keyboard DIY Kit
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The Corne keyboard, designed by foostan, is a split keyboard with 3×6 column staggered keys and 3 thumb keys. This version is based on an unofficial fork at https://github.com/daysgobye/crkbd
Features
- Per-key & Underglow RGB LEDs
- 42 key split keyboards
- Choc hotswap sockets
- Compatible with Kailh Choc v1 key switches
- Support VIA / QMK firmware

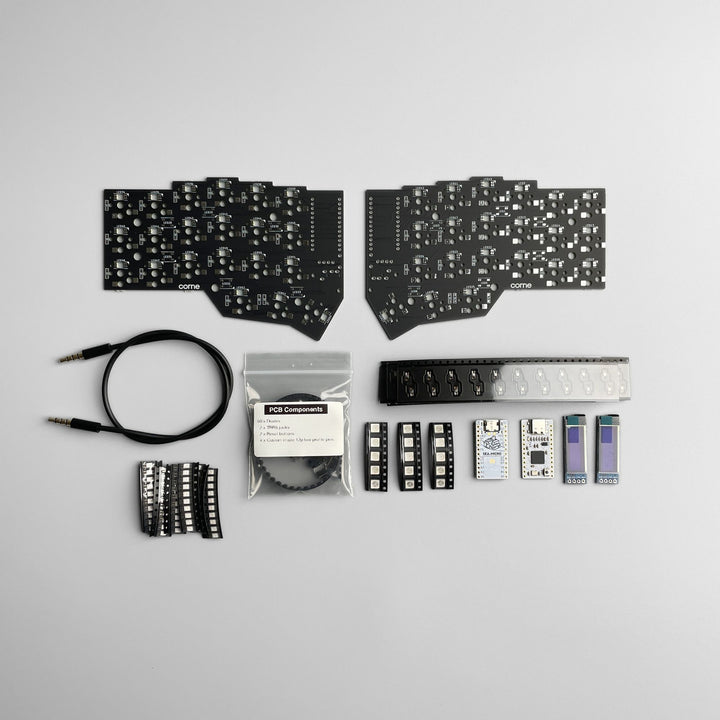

The Wired Corne v3.0 Choc DIY kit includes
- A set of PCB
- 2 * Sea Micro controllers
- 2 * OLED displays
- 4 * MCU 12p sockets & pins
- 2 * display 4p sockets & pins
- 42 * Kailh Choc sockets
- 42 * Diodes
- 1 * TRRS cable
- 2 * TRRS jacks
- 2 * Reset buttons
- 42 * Per key switches RGB LEDs SK6812MINI-E 3228
- 12 * Underglow RGB LEDs WS2812B-5050
* You will need a cable to connect the keyboard to your computer.
Important
- You will need soldering tools to build this keyboard.
- It is not compatible with the low profile Kailh Choc v2 or Cherry MX key switches.
License: https://github.com/foostan/crkbd
