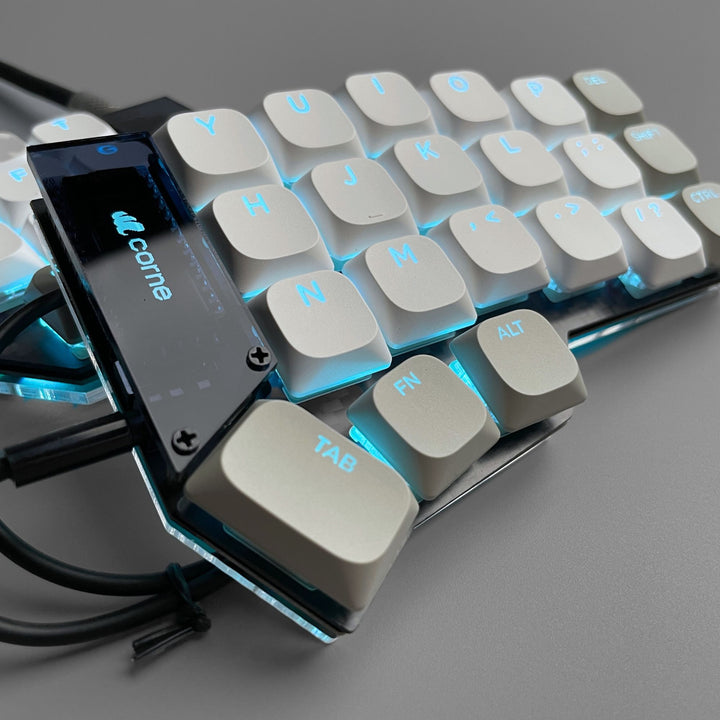

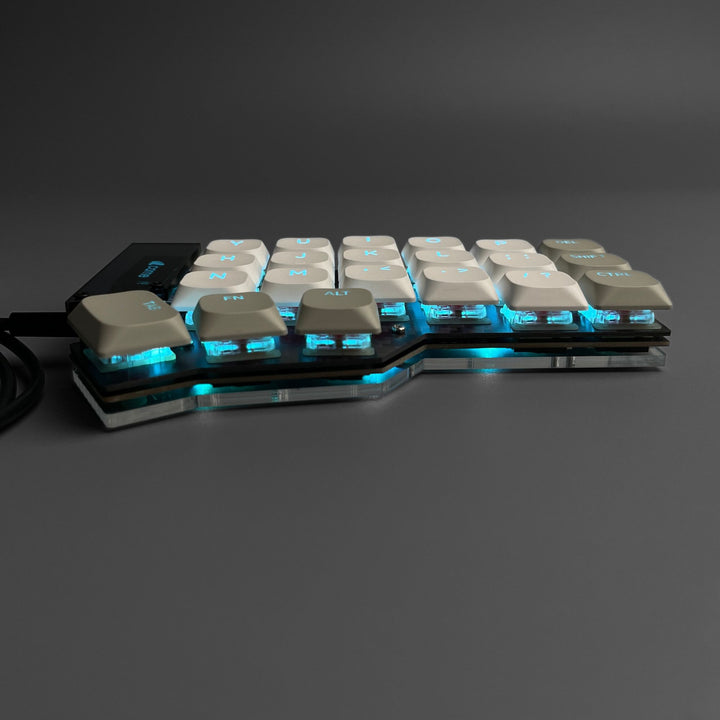

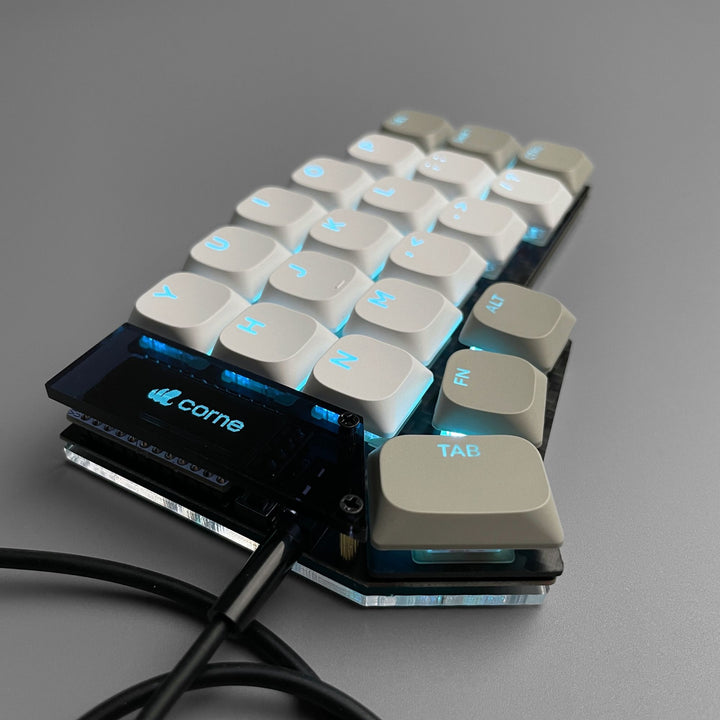

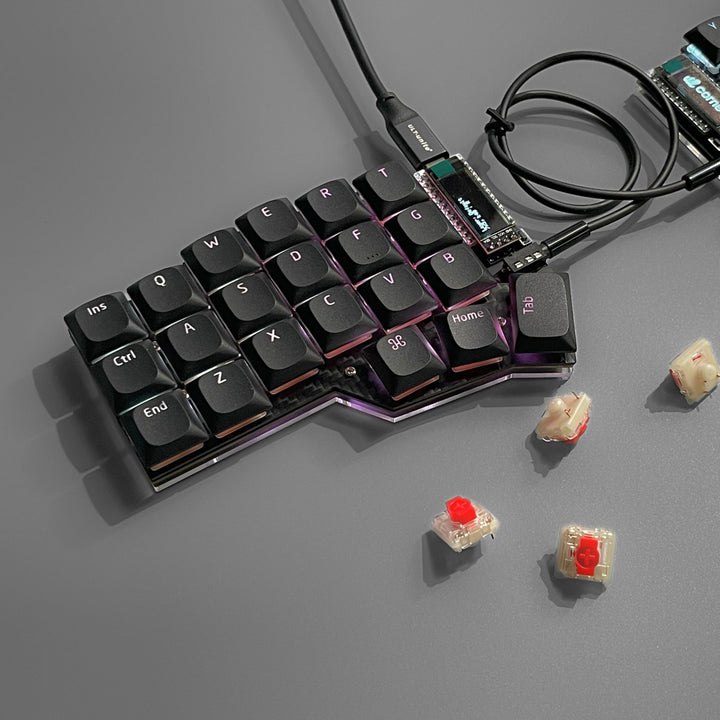

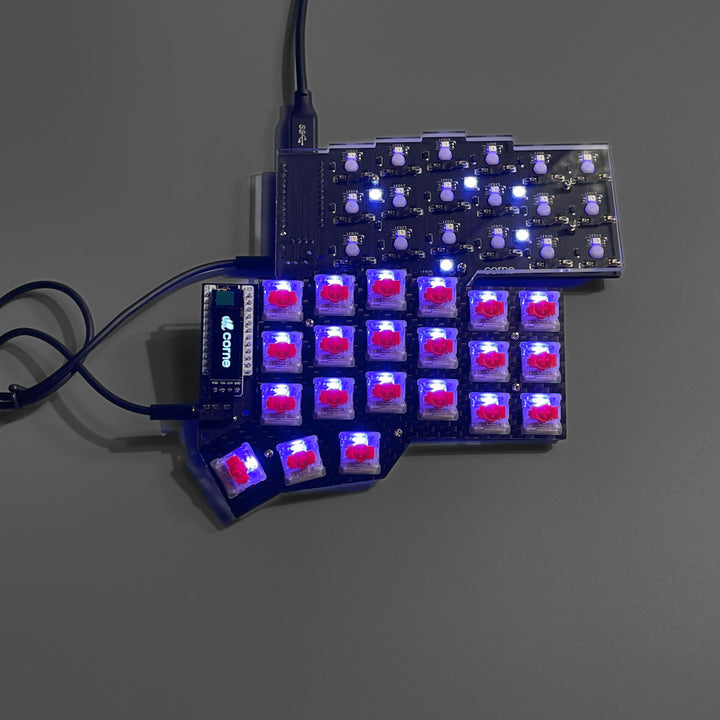

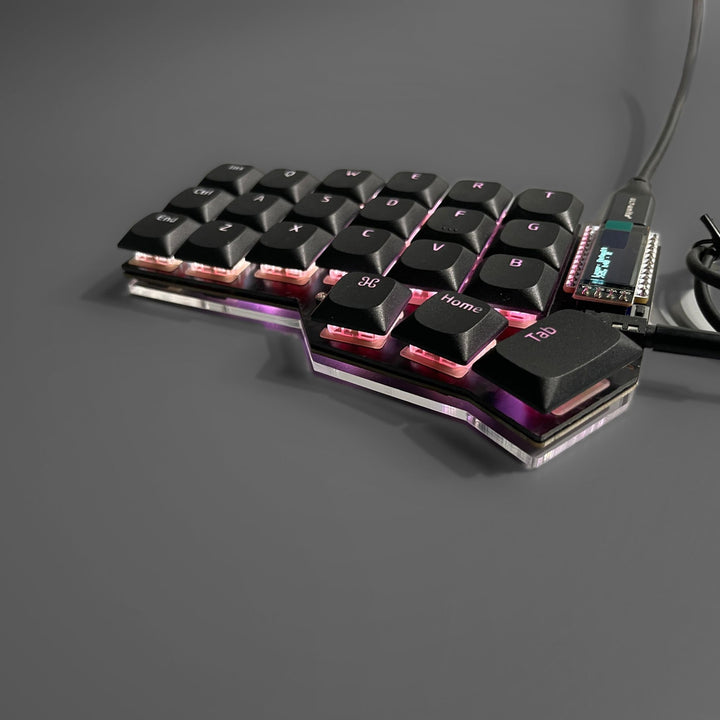

Pre-soldered Corne GLP (Gateron Low Profile) Split Wired Keyboard
$163.00 USD
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The Corne GLP (Gateron Low Profile) is a variant of the Corne keyboard, originally created by foostan.
Features
- Per-key & Underglow RGB LEDs
- Gateron low profile hotswap sockets
- Compatible with Gateron low profile v1.0 (KS-27) and v2.0 (KS-33) key switches
- Support VIA / QMK firmware
The pre-built Wired Corne GLP keyboard includes
- Soldered PCB, including
- Sea Micro controllers with MCU sockets
- OLED displays with display sockets
- Diodes

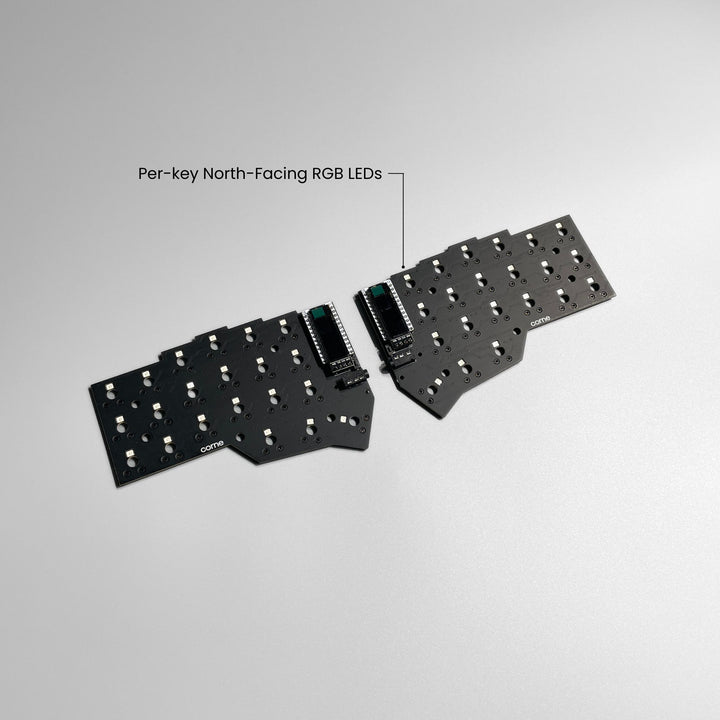

- Per-key RGB LEDs SK6812MINI-E 3228
- Underglow RGB LEDs WS2812B-5050

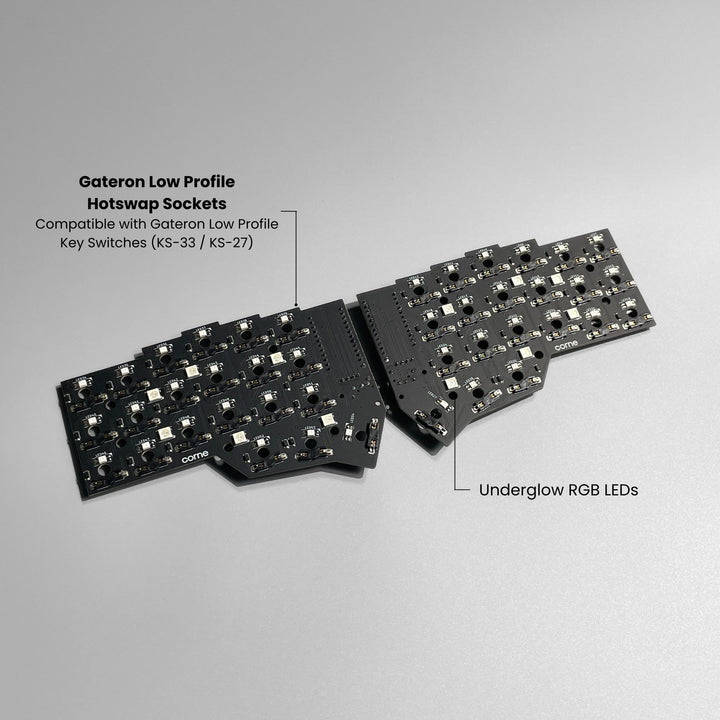

- Gateron GLP hotswap sockets
- TRRS jacks
- reset buttons
- TRRS cable
- Pre-flashed VIAL firmware
- No soldering tool is required
Important
- It is not compatible with the low profile Kailh Choc v1 or v2 key switches.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
- It is a wired keyboard. It cannot be used in wireless mode.
- You will need a USB-C cable to connect the keyboard to your device.
License: https://github.com/beekeeb/crkbd-glp
