Pre-soldered Corne v3.0 MX Split Wired Keyboard
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The Corne keyboard, designed by foostan, is a split keyboard with 3×6 column staggered keys and 3 thumb keys.
Features
- Per-key & Underglow RGB LEDs
- 42 key split keyboards
- MX hotswap sockets
- Compatible with MX key switches
- Support VIA / QMK firmware
The pre-built Wired Corne v3.0 MX keyboard includes

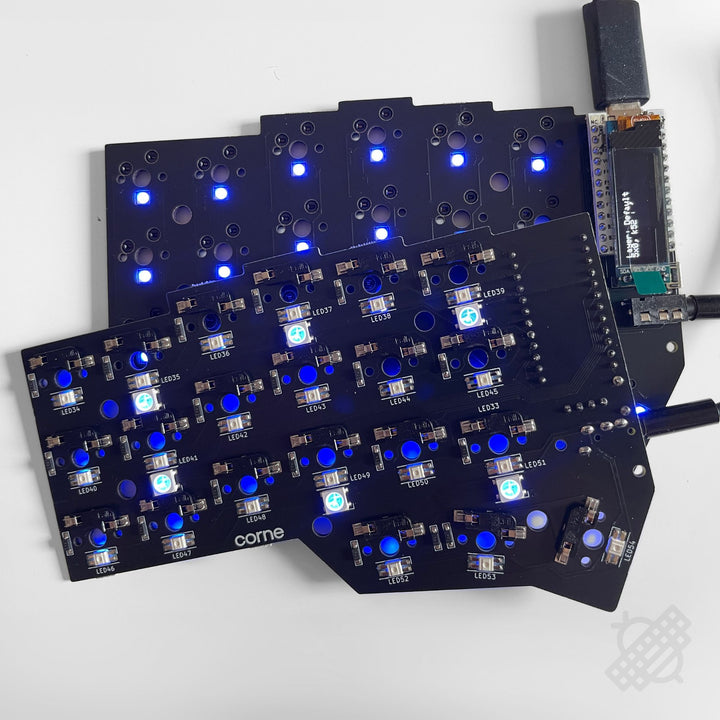

- Soldered PCB, including
- Sea Micro controllers with MCU sockets
- OLED displays with display sockets
- Diodes
- Per-key RGB LEDs SK6812MINI-E 3228
- Underglow RGB LEDs WS2812B-5050
- MX hotswap sockets
- TRRS jacks
- Sea Micro controllers with MCU sockets
- Reset buttons
- TRRS cable
- Pre-flashed VIAL firmware
- No soldering tool is required
* You will need a cable to connect the keyboard to your computer.
Important
- It is not compatible with the low profile Kailh Choc v1 or v2 key switches.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
- It is a wired keyboard. It cannot be used in wireless mode.
- You will need a USB-C cable to connect the keyboard to your device.

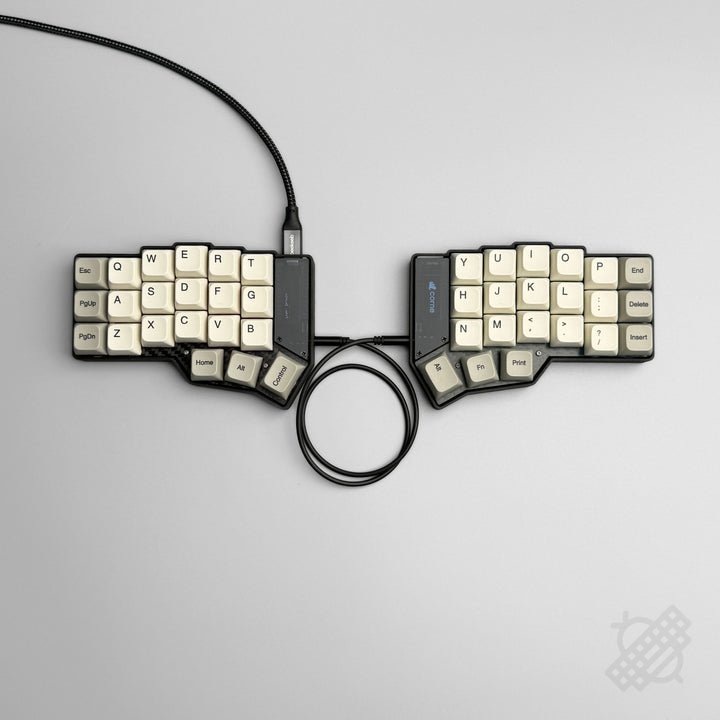

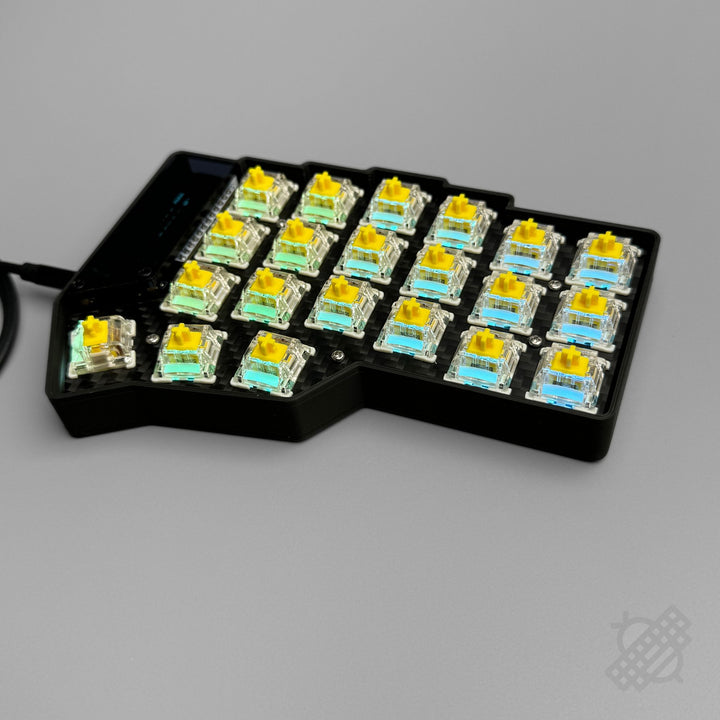

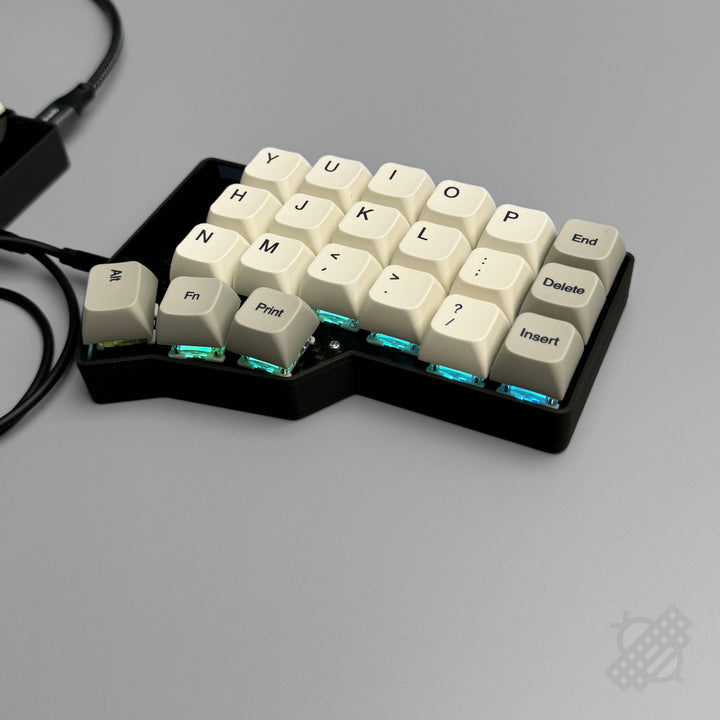

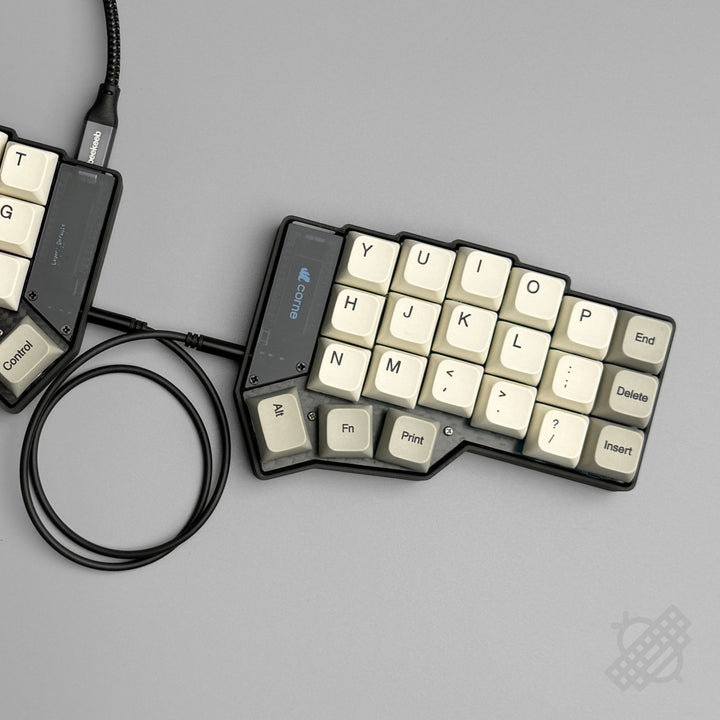

Finishing Product Showcase
License: https://github.com/foostan/crkbd
