Description

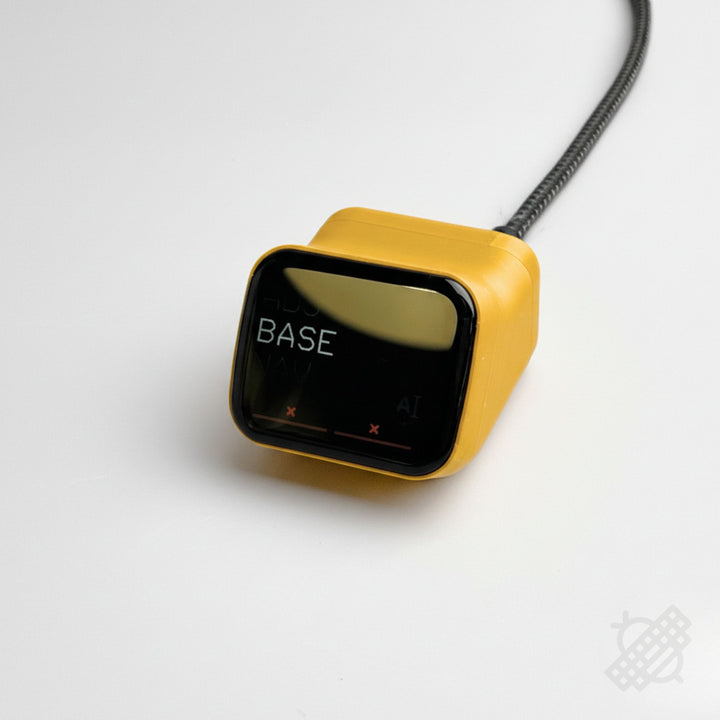

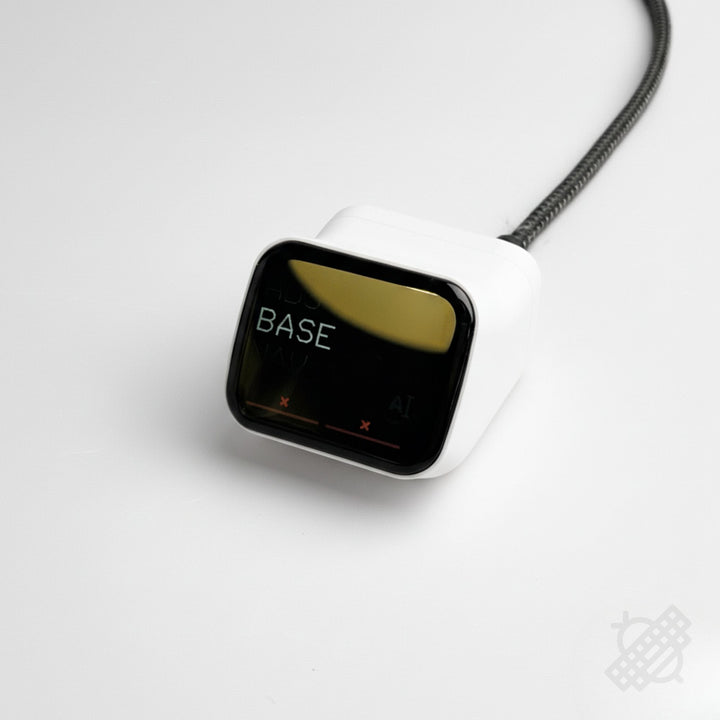

Prospector is a desktop ZMK dongle with full color LCD screen designed by carrefinho. This kit includes several enhancements for improved durability and a more soldering-friendly assembly experience.
Items Included
- improved 3D printed case (modded by beekeeb) with brass threaded inserts installed for greater durability and to prevent stripped screw holes
- Seeed Studio XIAO nRF52840 (XIAO BLE)
- WaveShare 1.69inch Touch LCD Module (1.69inch Round LCD Display Module with Touch panel, Micro LCD Display, 240×280 Resolution, IPS, SPI And I2C Communication, 262K Display Color)
- m2 x 6mm screws
Important Notes
- No soldering tool is required.
- This 3D printed case does not support a proximity sensor.
- While the display uses a touch-enabled LCD module, the touch functionality is not utilized by the Prospector.
- You will also need to compile your own ZMK firmware for both the Prospector Dongle and your keyboard. Reference: https://zmk.dev/docs/development/hardware-integration/dongle
Source file (Prospector): https://github.com/carrefinho/prospector
Source file (ZMK module for Prospector): https://github.com/carrefinho/prospector-zmk-module
