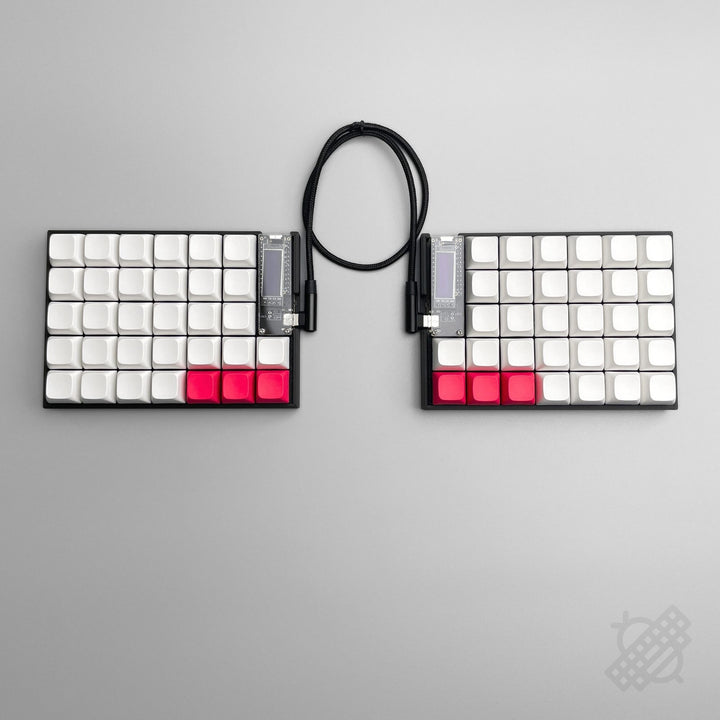

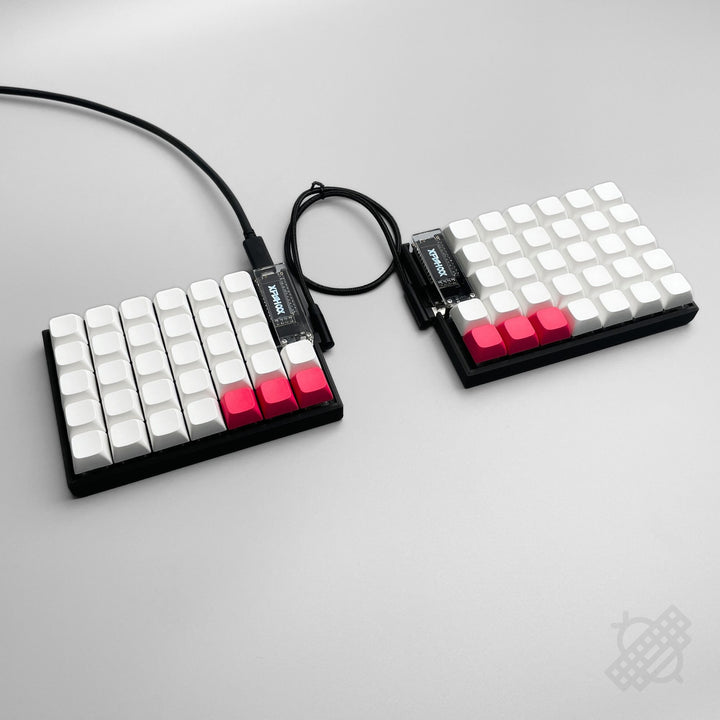

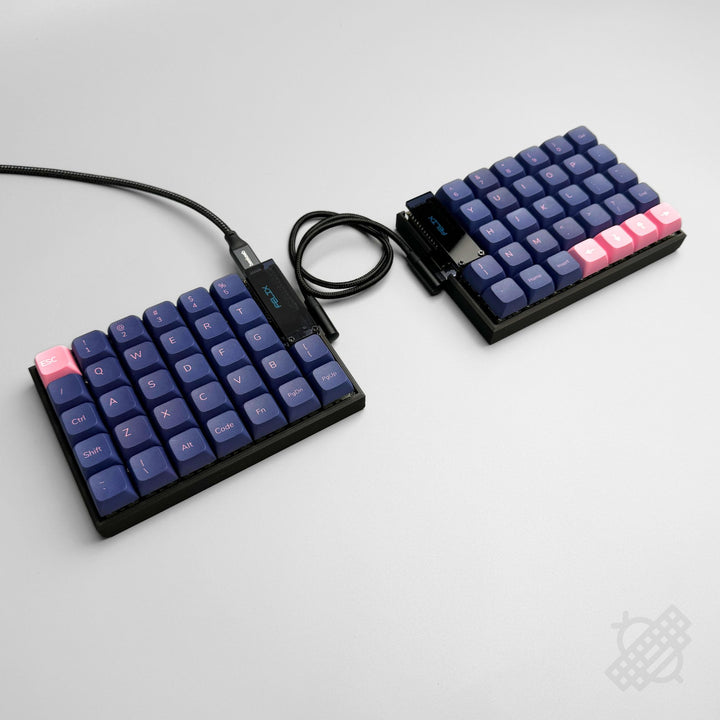

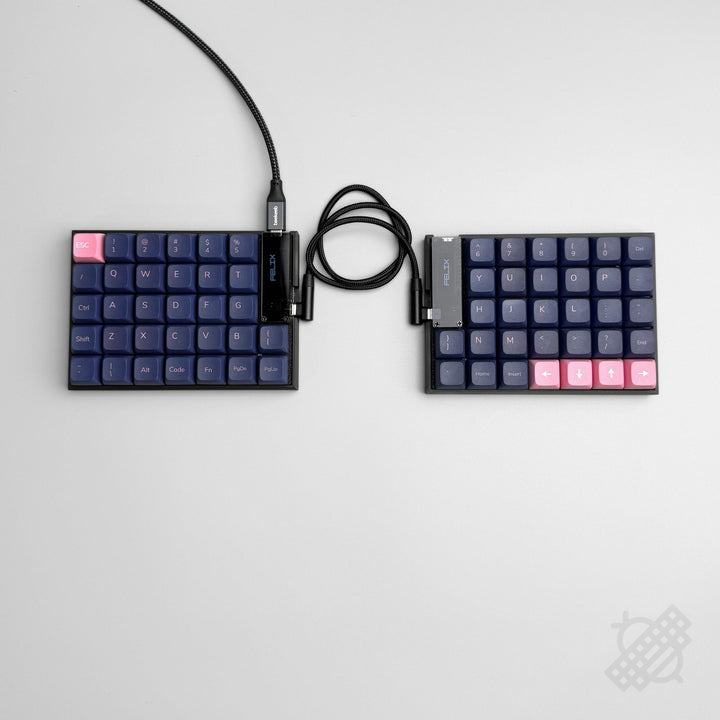

Pre-soldered FelixKeeb MX Ortholinear Split Keyboard - RP2040 Wired
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The FelixKeeb is an open source 5×12+4 (5×6+2 on each side) split ortholinear keyboard with hotswap sockets support released by beekeeb. It is based on Cipulot’s helixhschoc and MakotoKurauchi’s helix.
Features
- Helix with MX hotswap sockets (64 keys Ortholinear Layout)

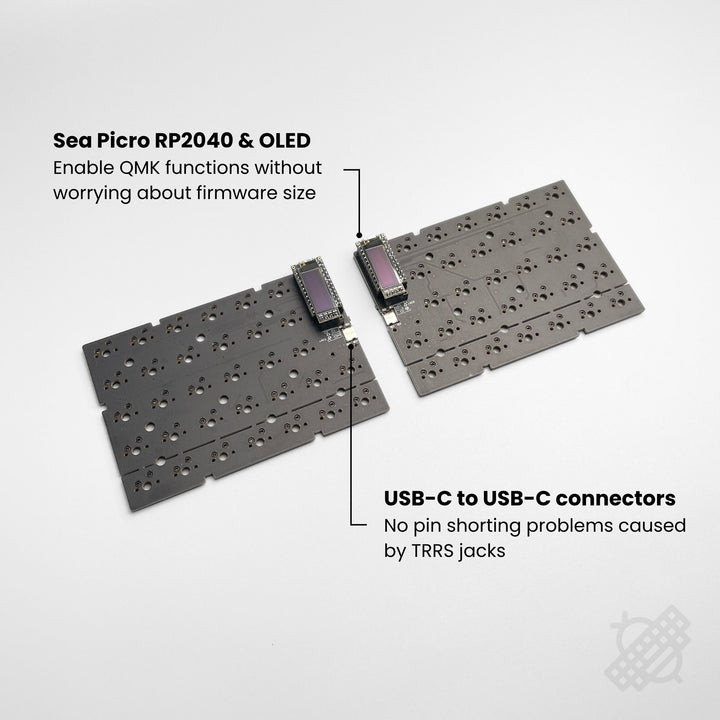

- Sea Picro RP2040 16 MB flash memory controllers: Enable QMK functions without worrying about firmware size
- USB-C connectors: No pin shorting problems caused by TRRS jacks
- Hotswap Sockets: Changing MX key switches whenever you want
- Compatible with Helix/rev2 VIAL Firmware
The pre-built Wired FelixKeeb MX Split keyboard includes
- All the components will be soldered to the PCB, including
- Sea Picro RP2040 controllers
- OLED displays
- Diodes
- MX hotswap sockets
- USB-C connectors
- Reset buttons
- Controller and display are socketed - Replace or reuse the core components without difficulty
- USB-C to USB-C Cable

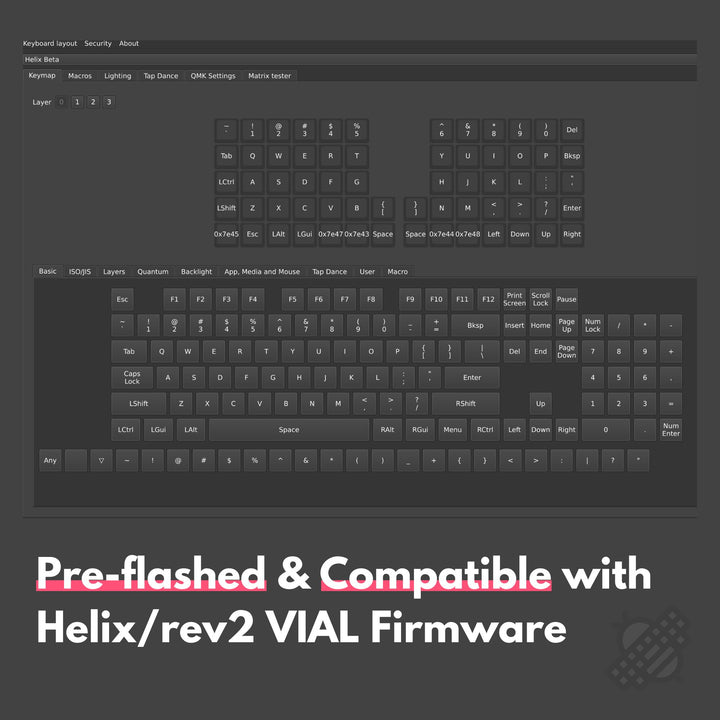

- Pre-flashed VIAL firmware
Important Notes
- Wired-Only: This is a wired keyboard and cannot be used as a wireless keyboard.
- Switch Compatibility: It is not compatible with the low profile Kailh Choc v1, v2 or Gateron GLP key switches.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
Original Project & License: https://github.com/beekeeb/FelixKeeb
