Pre-soldered Wireless Chocotako44 (Choctopus44 mod.) Keyboard
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description

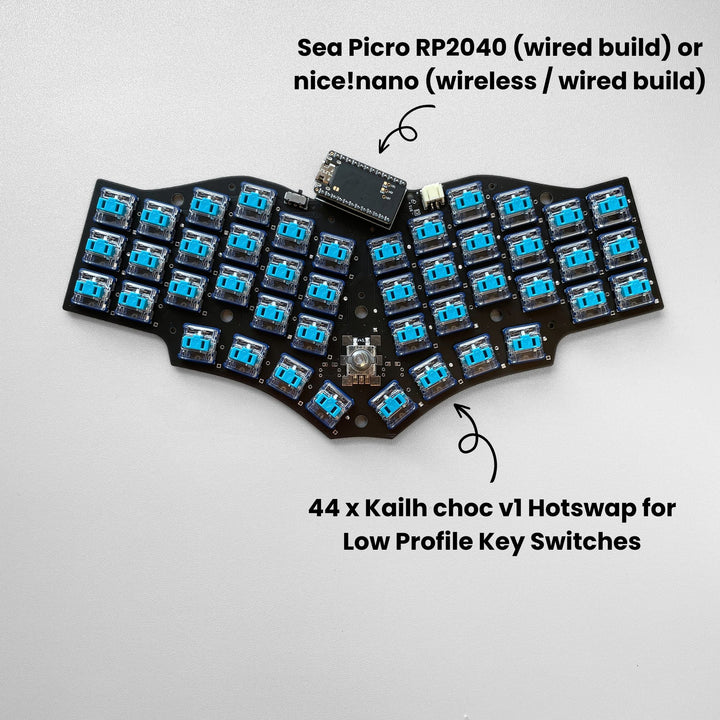

Chocotako44 is a modified version of Choctopus44 by SlightHeadache which is a fork of Reviung41 keyboard.
Features

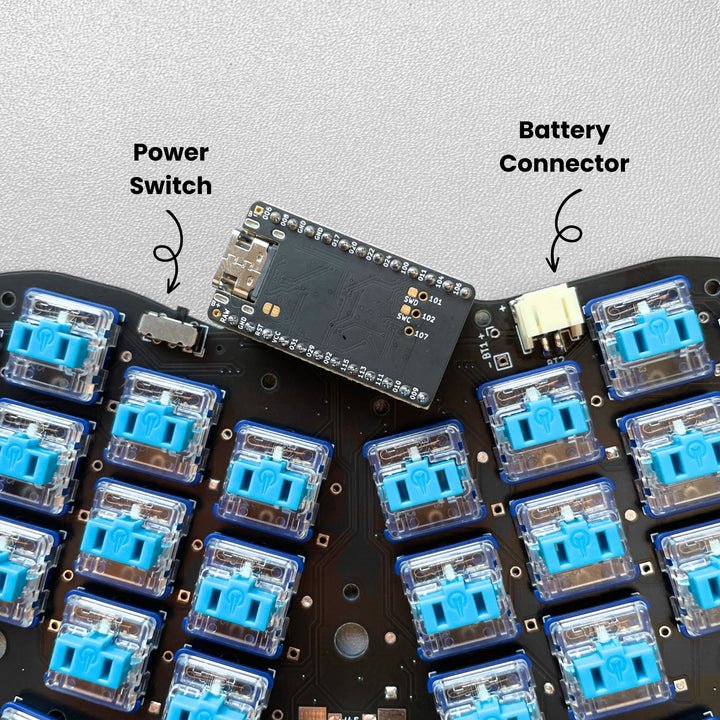

- On Board Power Switch & Battery Connector
- Can be used in wireless mode using a battery or wired mode by connecting the keyboard to the computer using a USB-C cable
- 44 Keys with 1 Rotary Encoders
- Kailh Choc v1 Hotswap
- Low Profile Key Switches
- Column Staggered and Unibody
The pre-soldered Wireless Chocotako44 keyboard includes
- The components are soldered on the PCB, including
- nice!nano controller (controller is socketed)
- battery socket
- power switch
- diodes

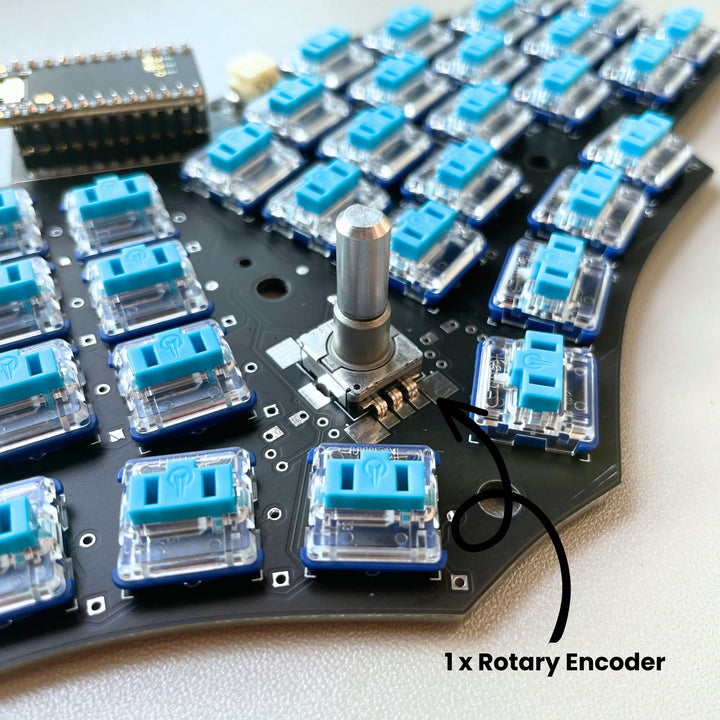

- rotary encoder
- Kailh Choc hotswap sockets
- Sockets are added to the controller
- A aluminium rotary knob
- Pre-flashed with ZMK firmware
Important
- Battery Requirement: This keyboard does not ship with batteries. Please purchase a 301230 or 401230 batteries with JST-PH connectors and the correct polarity from local stores.
- Switch Compatibility: Supports Kailh Choc v1 key switches only. Choc v2 key switches are not supported.
- Firmware & Keymap Configuration:
- Requires compiling ZMK firmware using command-line tools or GitHub Actions.
- QMK and QMK Toolbox are not supported in this wireless version.
- Requires compiling ZMK firmware using command-line tools or GitHub Actions.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
