Pre-soldered Chocofi 36 Keys Low Profile Wireless Split Keyboard
To build a complete keyboard, please select the necessary add-ons from the options below.
Chocofi by Pavel Glushkov is a low profile 36-key hotswappable split keyboard inspired by Fifi keyboard. The PCB is modified to have a on-board power switch for battery management (good for wireless build).
Features
- Wireless keyboard
- 36 Keys
- Column staggered keys with 3 thumb keys

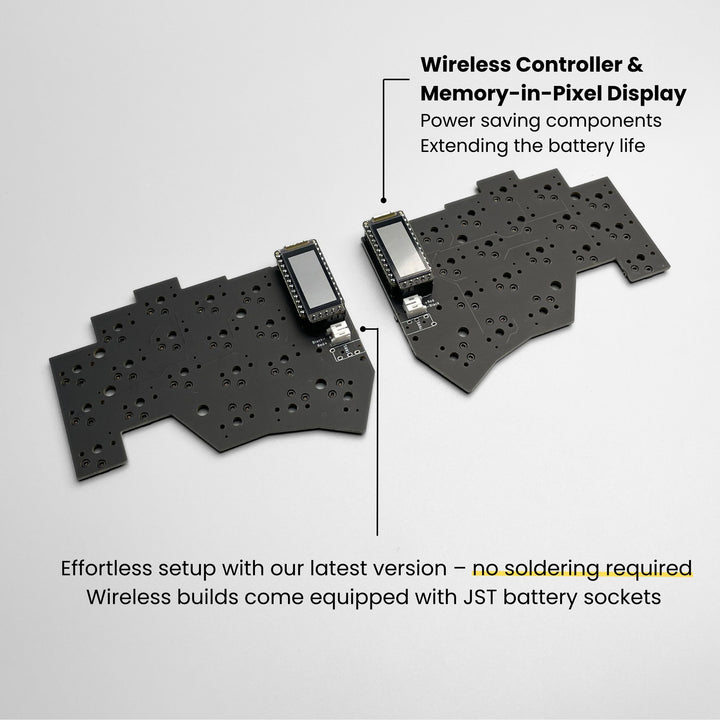

- Native support using with wireless components (power switches, bluetooth controllers and memory-in-pixel displays)
- Hotswappable Choc Low Profile Sockets - Compatible with Kailh Choc v1 low profile key switches
- Pre-flashed with ZMK firmware
The pre-built Wireless Chocofi keyboard includes
- Soldered PCB, including

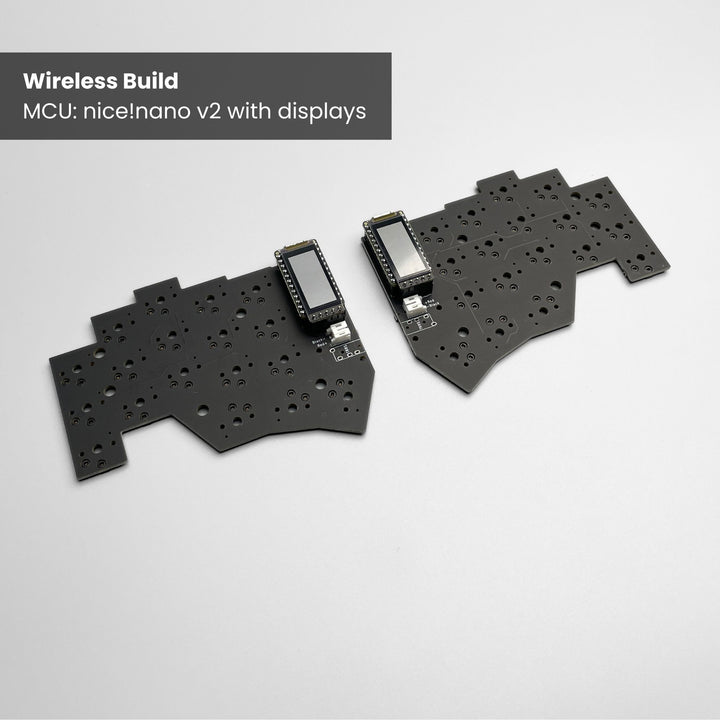

- Bluetooth controller (nice!nano v2) with MCU sockets
- (optional) Sharp Memory-in-Pixel display with display sockets
- diodes, choc hotswap sockets
- battery sockets
- power switches
- reset buttons
- No soldering tool is required
- Pre-flashed ZMK firmware
Important

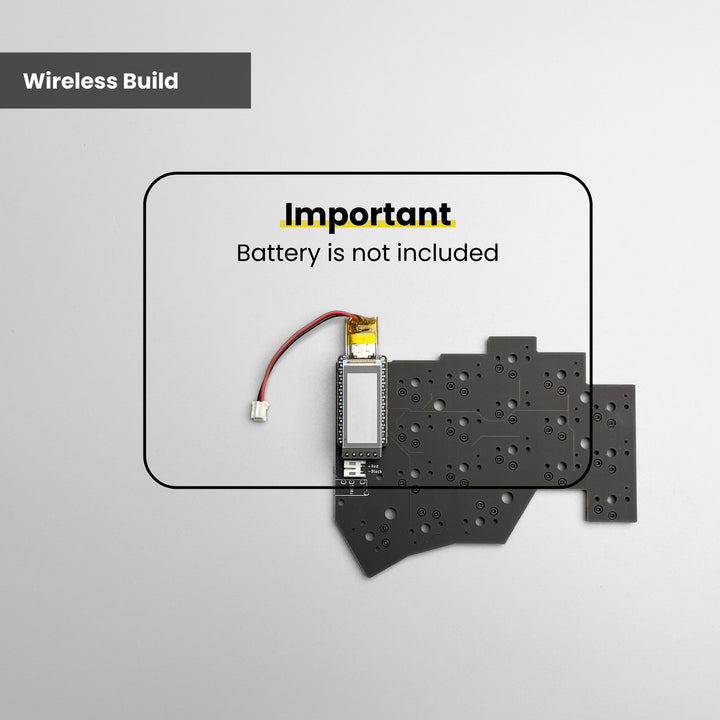

- Battery Requirement: This keyboard does not ship with batteries. Please purchase a pair of 301230 or 401230 batteries with JST-PH connectors and the correct polarity from local stores.
- Wireless-Only: This is a wireless keyboard and cannot be used as a wired keyboard.
- Switch Compatibility: Supports Kailh Choc v1 key switches only. Choc v2 key switches are not supported.
- Firmware & Keymap Configuration:
- Requires compiling ZMK firmware using command-line tools or GitHub Actions.
- QMK and QMK Toolbox are not supported in this wireless version.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.

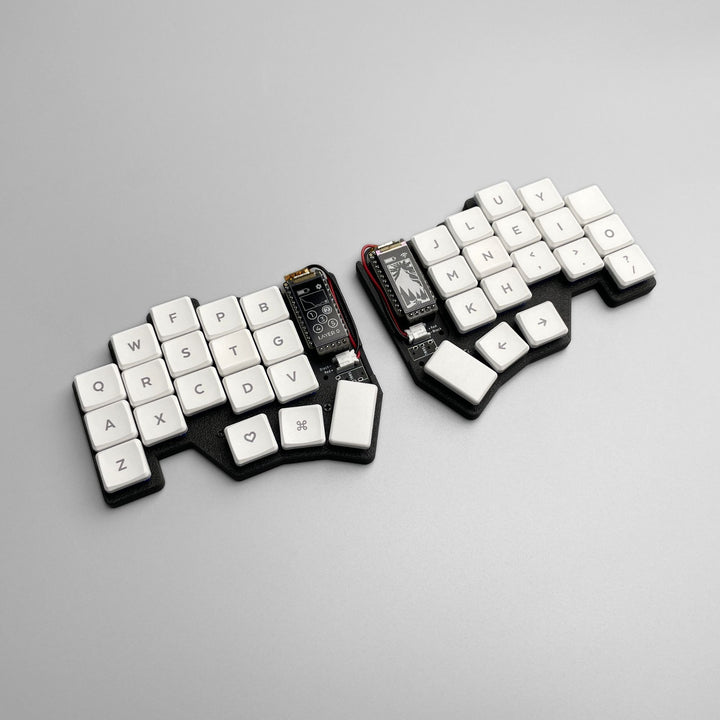

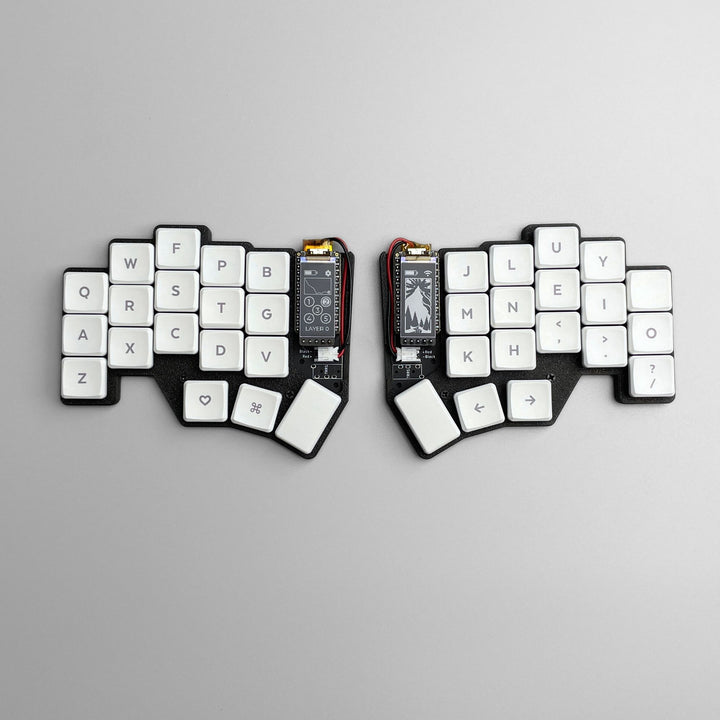

Product Showcase
License: https://github.com/pashutk/chocofi
Customer Reviews
Everything is reasonable and as described ☺️
Everything arrived in perfect condition earlier than expected. All information of extra requirements where provided to me via message. I messed up my zmk flashing and the sellers website provided all the details required for me to fix my issue (screen weren't working after flashing). Highly recommended

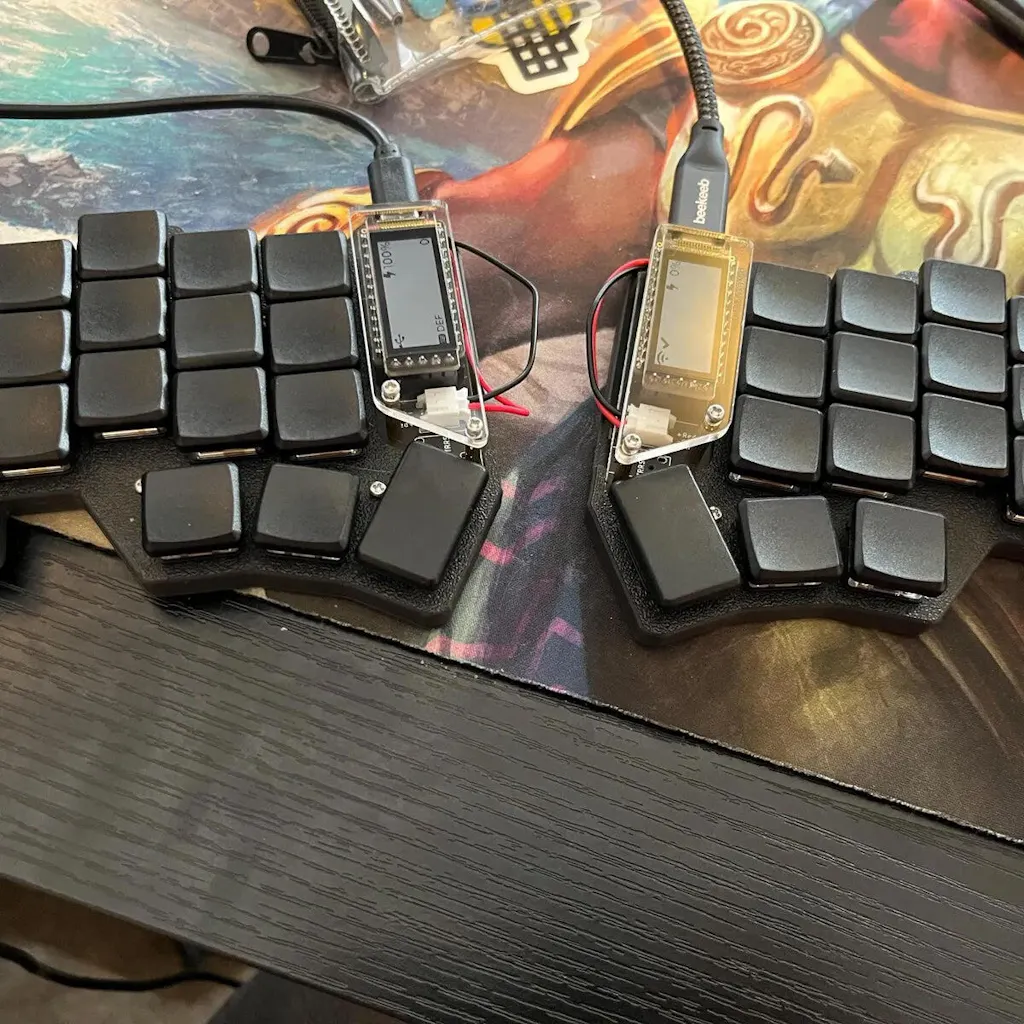

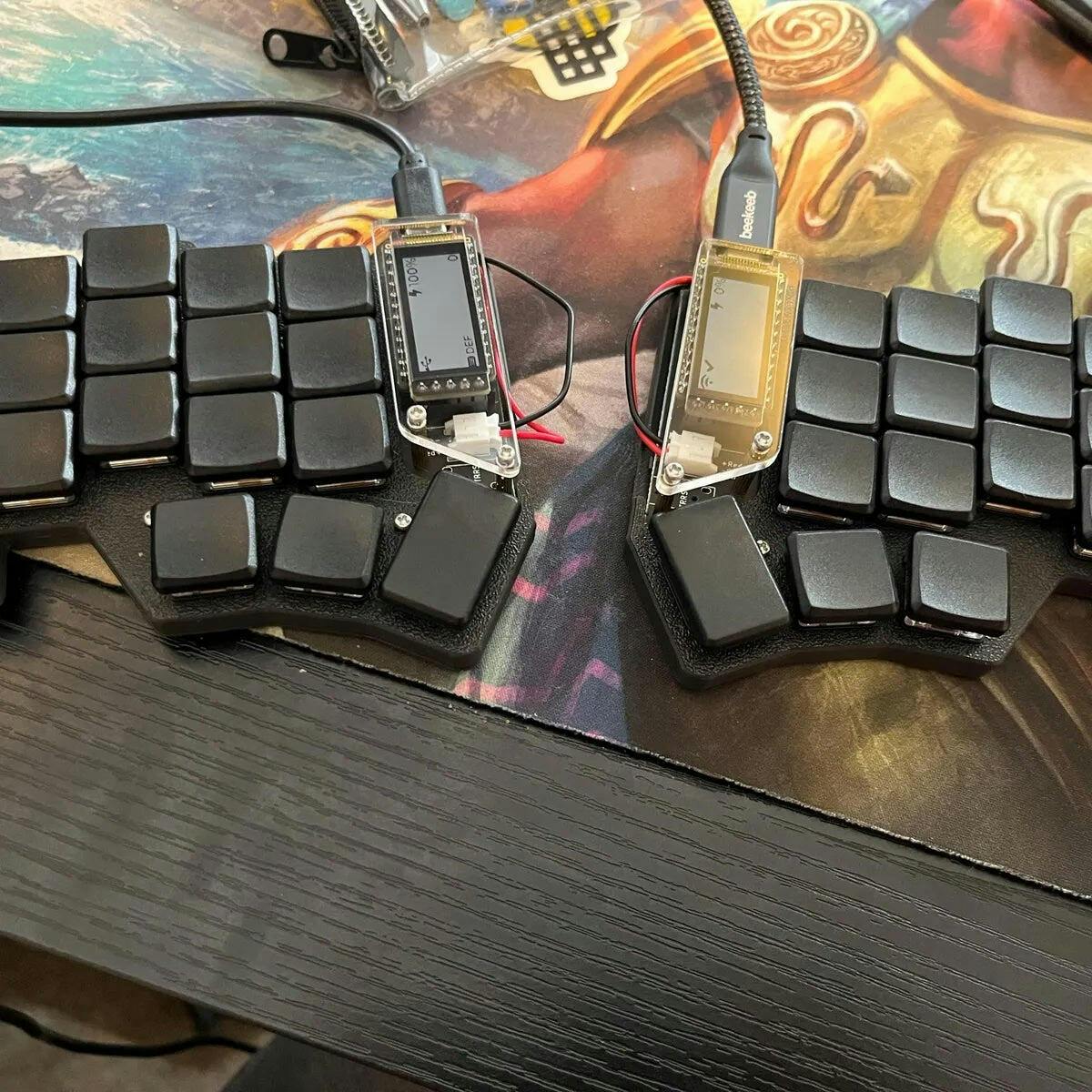

Been using this keyboard for over a week now. Setup was easy and seller was really helpful when I did have issues. Would recommend

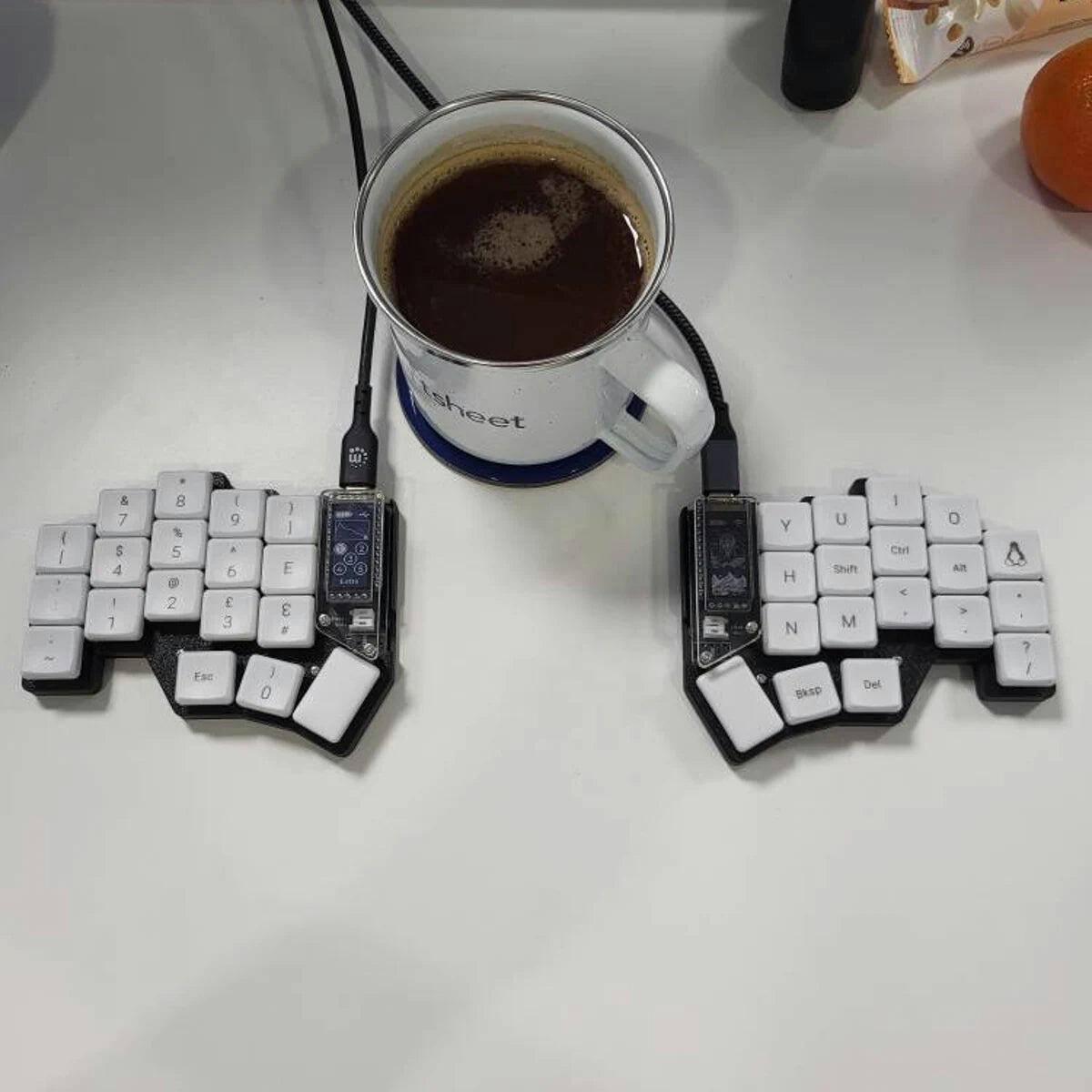

Bought twice and I don't regret my purchases, I keep both keyboards and they are amazing and awesome

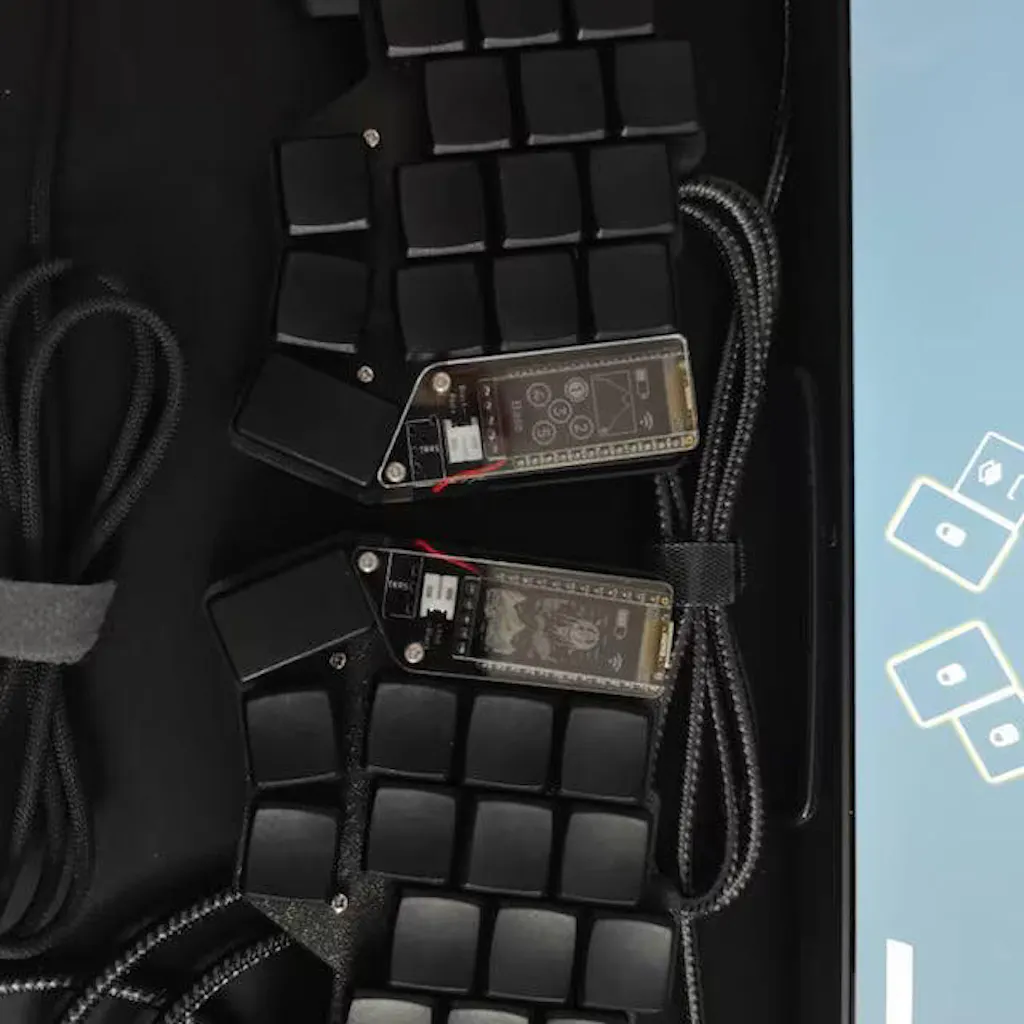

Top quality and responded quickly of progress. It is exactly what I was looking for. I paid extra for shipping and Leo didn't let me down. It was overnighted from HK to the states and I got it from FedEx the next day.
