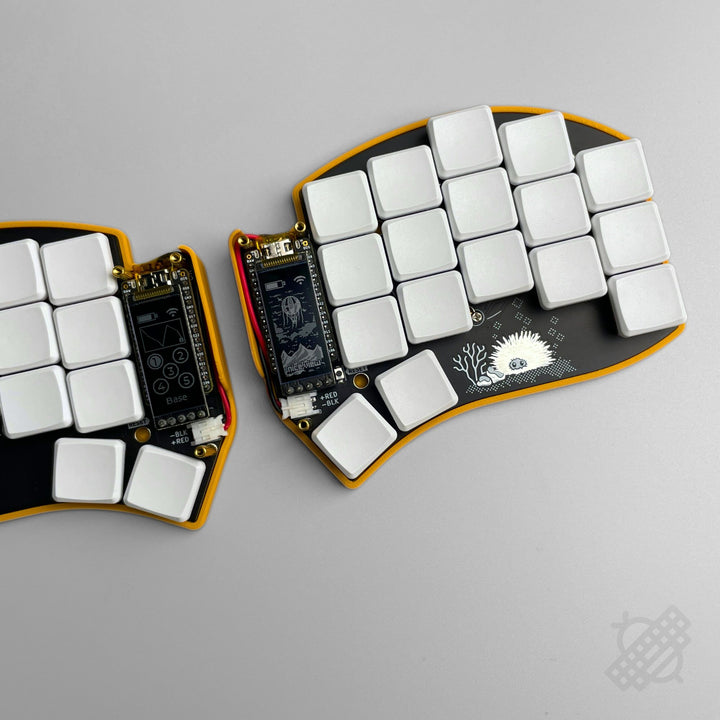

Pre-soldered Urchin 34 Keys Low Profile Wireless Split Keyboard
$217.00 USD
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
A modified version of Urchin, originally designed by duckyb.
Features
- 34-key wireless split keyboard
- Designed for wireless usages – evolving from the popular Sweep keyboard
- On board battery connectors and power switches

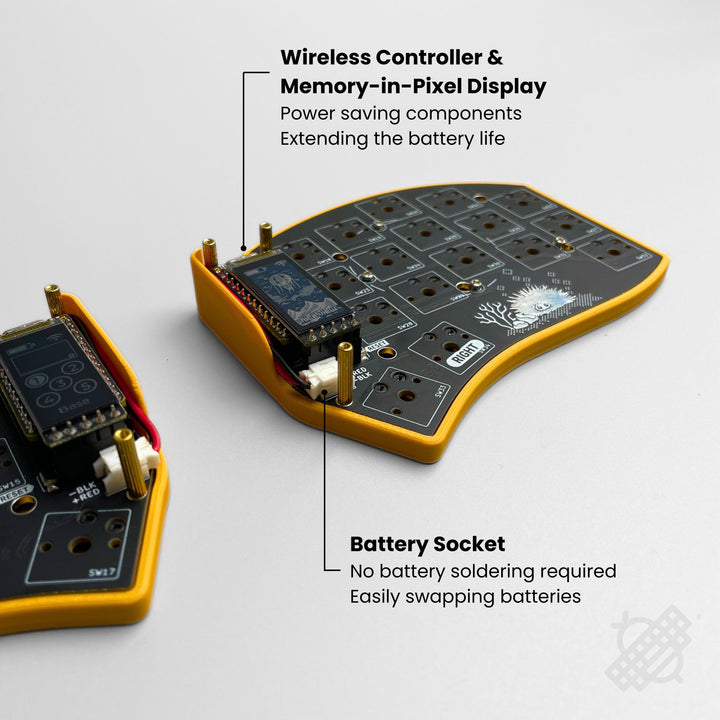

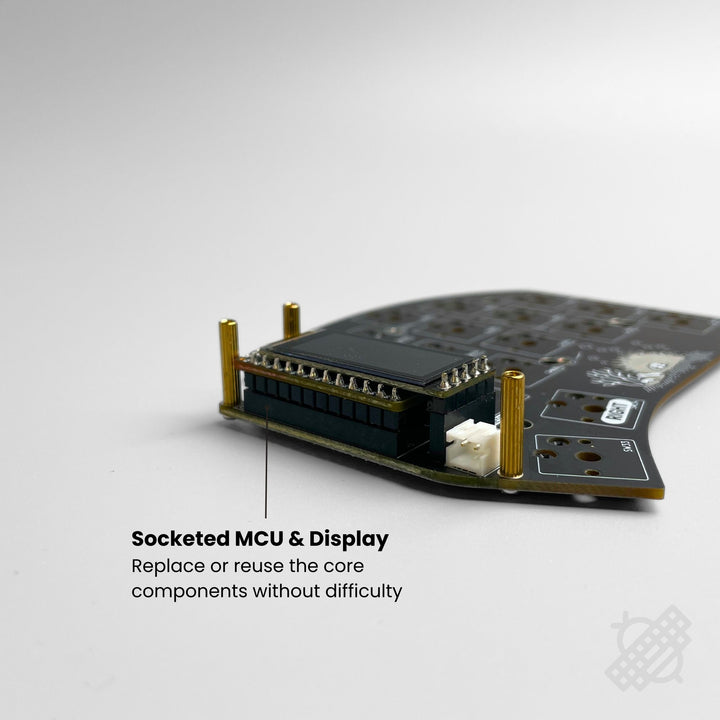

- Socketed controllers and displays – allowing thicker and larger capacity batteries placing under the controllers
- Using power saving components

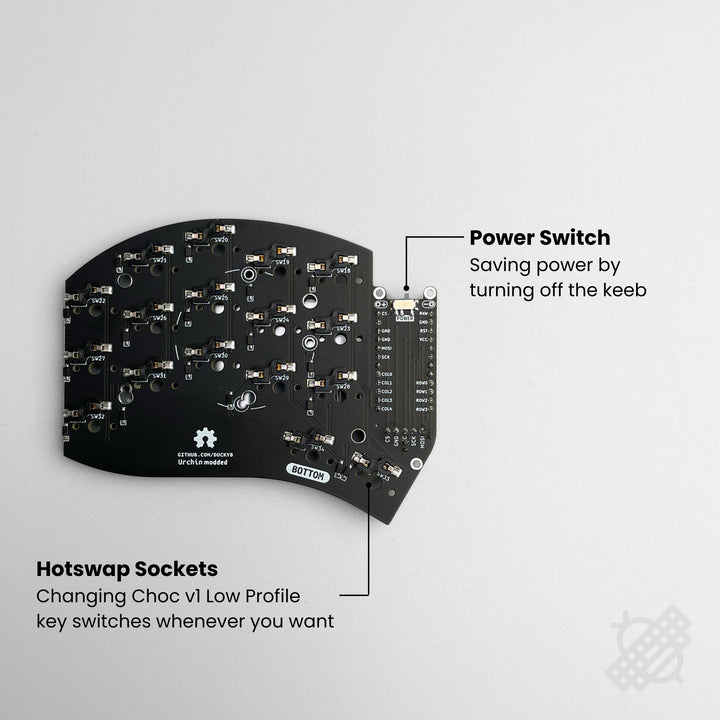

- With Kailh Choc v1 hotswap sockets – hotswappable low profile key switches
- Pre-flashed ZMK firmware
The pre-built Wireless Urchin keyboard includes

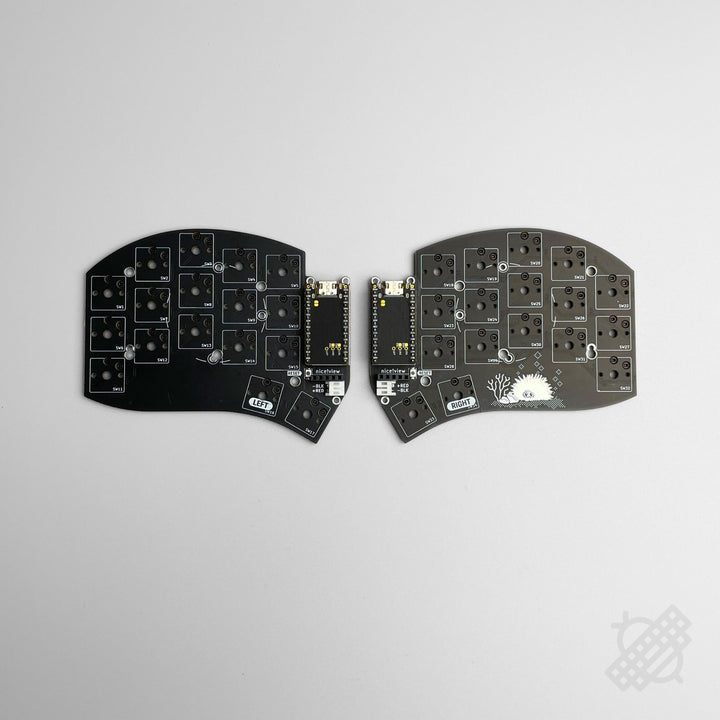

- Soldered PCB, including
- Bluetooth controller (nice!nano v2) with MCU sockets

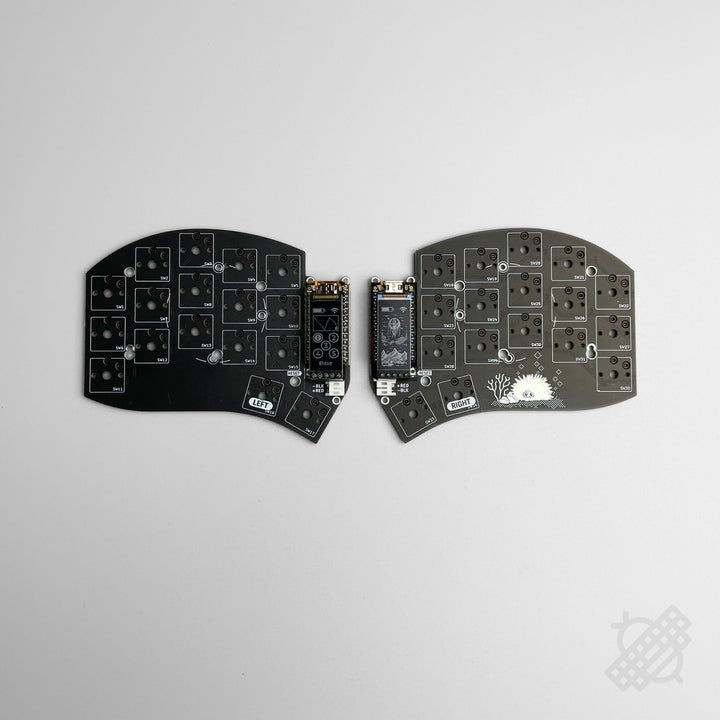

- (optional) Sharp Memory-in-Pixel display with display sockets
- diodes, choc hotswap sockets
- battery sockets
- power switches
- reset buttons
- No soldering tool is required
- Pre-flashed ZMK firmware
Important Notes

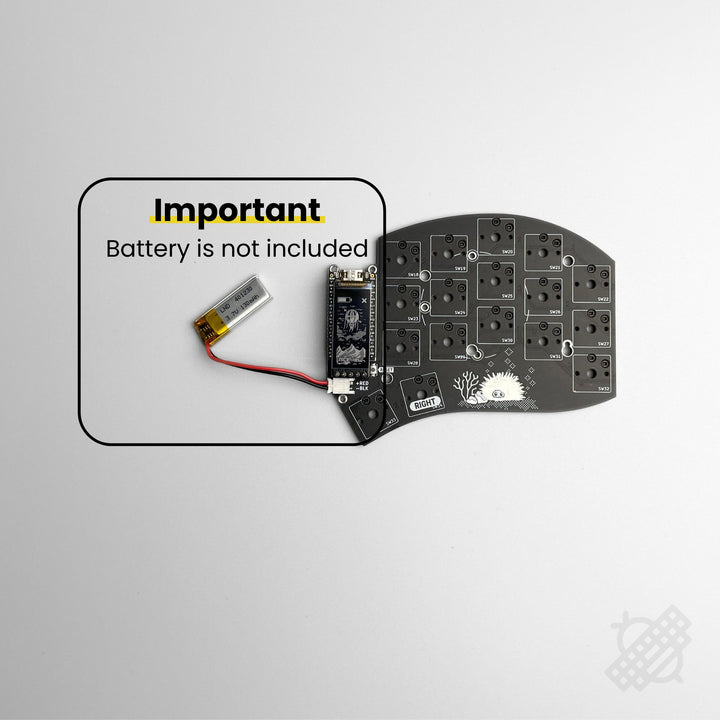

- Battery Requirement: This keyboard does not ship with batteries. Please purchase a pair of 301230 or 401230 batteries with JST-PH connectors and the correct polarity from local stores.
- Wireless-Only: This is a wireless keyboard and cannot be used as a wired keyboard.
- Switch Compatibility: Supports Kailh Choc v1 key switches only. Choc v2 key switches are not supported.
- Firmware & Keymap Configuration:
- Requires compiling ZMK firmware using command-line tools or GitHub Actions.
- QMK and QMK Toolbox are not supported in this wireless version.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
Original Project & License: https://github.com/duckyb/urchin
