Pre-soldered Wireless Allium58 Choc Low Profile Split Keyboard
$208.00 USD
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The Allium58 is an open source 6*4+4keys column-staggered split keyboard. It is based on Lily58 Pro created by kata0510. The Allium58 shares the same layout as the Lily58 Pro and also supports using the original Lily58 Pro firmware.
Features
-
Enhanced Wireless Capability: With native support for power-saving nice!view or other memory-in-pixel displays, ensuring efficient power management and extended battery life.

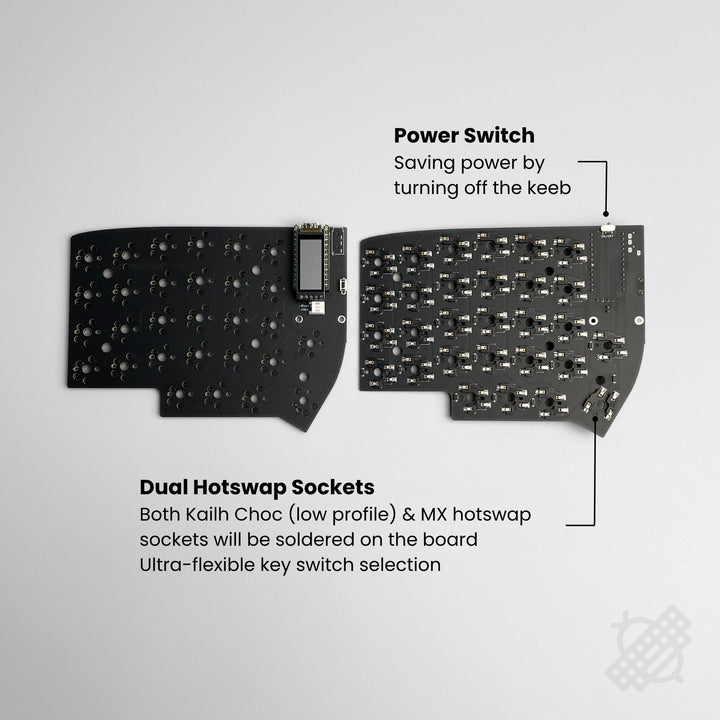

- Improved Battery Management: Power switches and JST battery sockets have been added to the Allium58. These additions make it easier to control power supply and facilitate seamless battery replacement.

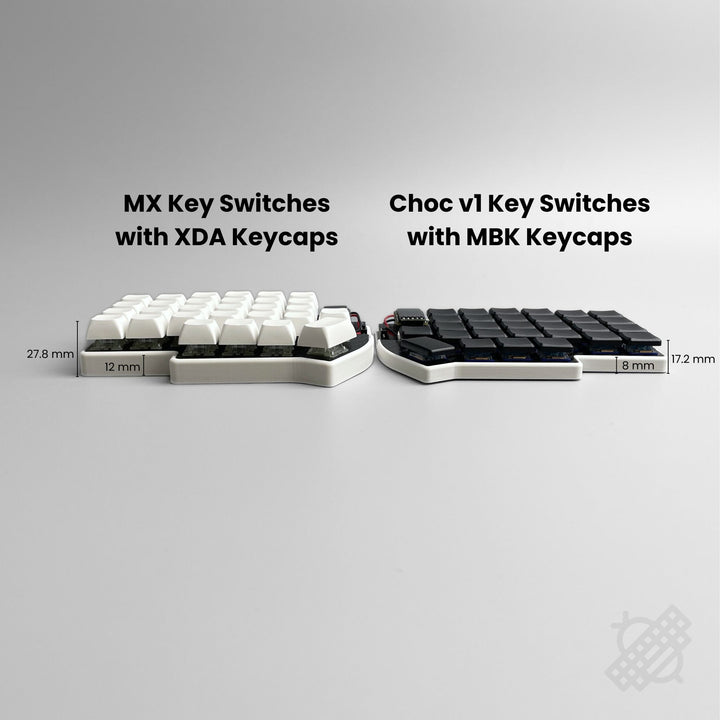

- Dual Hotswap Sockets: Same as the Lily58 Pro keyboard, the Allium58 Choc/MX version supports having both Kailh Choc v1 (low profile) & MX hotswap sockets on the PCB. Both of them will be soldered on the board that provides ultra-flexible key switch selection.
- Compatible with Lily58 Pro firmware
The pre-built Wireless Allium58 Choc Split keyboard includes
- All the components will be soldered to the PCB, including
- Bluetooth nice!nano v2 controllers
- (optional) Sharp Memory-in-Pixel displays
- Diodes
- Kailh Choc v1 & MX hotswap sockets
- Battery sockets
- Power switches
- Reset buttons

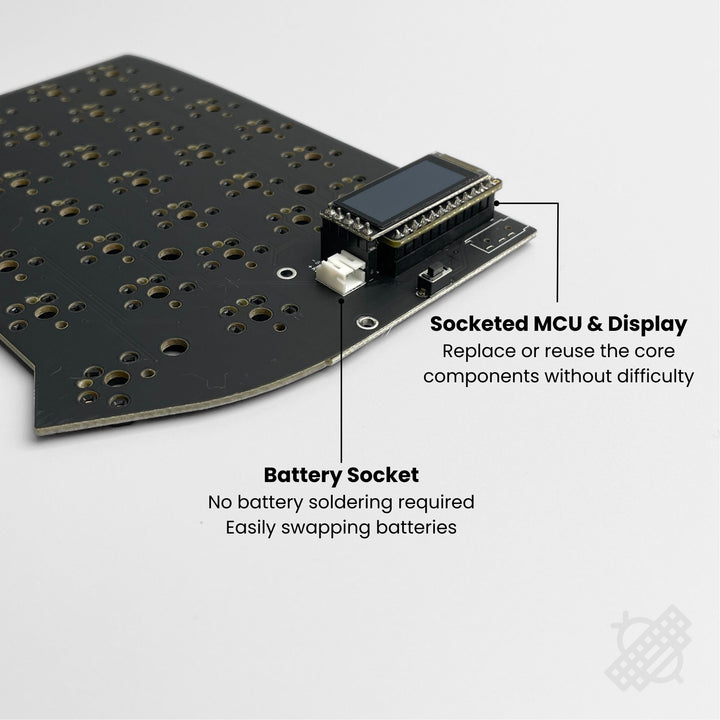

- Controller and display are socketed
- Pre-flashed ZMK firmware
Important Notes

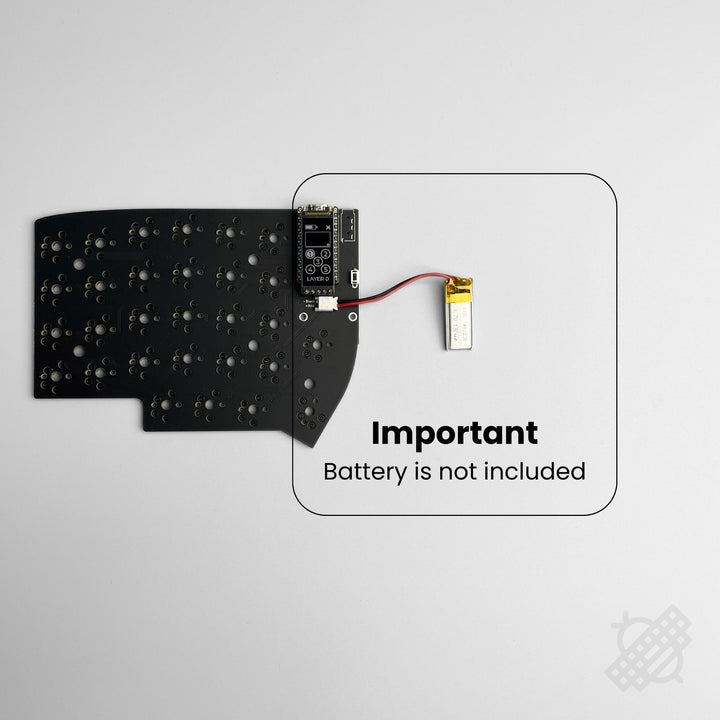

- Battery Requirement: This keyboard does not ship with batteries. Please purchase a pair of 301230 or 401230 batteries with JST-PH connectors and the correct polarity from local stores.
- Wireless-Only: This is a wireless keyboard and cannot be used as a wired keyboard.
- Switch Compatibility: It is not compatible with the low profile Kailh Choc v2 or Gateron GLP key switches.
- Firmware & Keymap Configuration:
- Requires compiling ZMK firmware using command-line tools or GitHub Actions.
- QMK and QMK Toolbox are not supported in this wireless version.
- DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.
Original Project & License: https://github.com/beekeeb/Allium58
