Hillside46 DIY Keyboard Kit - RP2040 Wired

$68.00 USD
Key Type
Choc v1
# of Keys
46
Hotswappable
No
Firmware
QMK / VIA

Hillsides designed by mmccoyd.

The Hillsides are 40% split-ergonomic keyboards with column-stagger layout. Both Hillside 46 and Hillside 52 keyboard are splayed layout and have a break-off outer pinkie column that you can turn it to be a 40 or 44 keys split keyboard. Hillside 48 and Hillside 56 keyboard have a non-splayed layout.

Option: Hillside46 DIY Keyboard Kit - RP2040 Wired

Hillside46 DIY Keyboard Kit - RP2040 Wired
DIY Kit (Hillside46 Wired)
Hillside46 DIY Keyboard Kit - Wireless
DIY Kit (Hillside46 Wireless)
Pre-soldered Wireless HSHS46 (Hotswappable Hillside46) Split KeyboardPre-soldered Wireless HSHS46 (Hotswappable Hillside46) Split Keyboard
Pre-soldered (HSHS46 Wireless Choc v1)
Pre-soldered Wireless HSHS46 (Choc v2) Split KeyboardPre-soldered Wireless HSHS46 (Choc v2) Split Keyboard
Pre-soldered (HSHS46 Wireless Choc v2)

Controllers: Sea Picro RP2040

Sea Picro RP2040
Optional Add-Ons - Compatibility-Guaranteed

Key Switches

Red Pro (Linear 35gf)
+$39.00
Red (Linear 50gf)
+$35.00
Brown (Tactile)
+$35.00
Navy (Thick Clickbar 60gf)
+$45.50
SHOW ALL

Keycaps

MBK 1u Black
+$21.00
MBK 1u White
+$21.00
MBK Legend 40s Blue on Black
+$52.00
MBK Legend 40s Gray on White
+$52.00
SHOW ALL

Extra Keycaps

MBK Homing Black (2pcs)
+$1.60
MBK Homing White (2pcs)
+$1.60

Case

Black
+$31.00
White
+$31.00
Honey Yellow
+$31.00

Have questions? Email support@beekeeb.com
Description

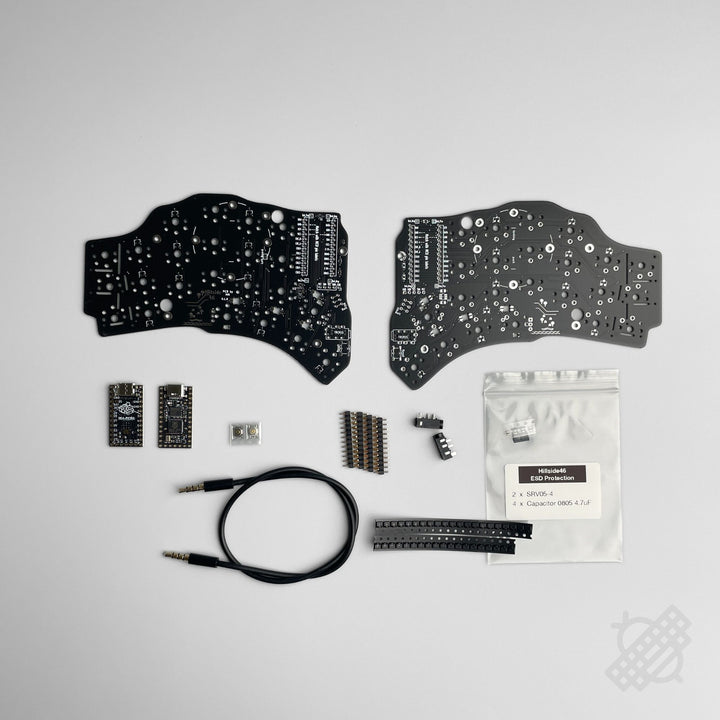

The Wired Hillside46 kit includes:

  • A set of PCB (black)
  • Controller Sockets
  • RP2040 Sea Picro Controllers
  • ESD chip
  • Decoupling capacitor
  • TRRS jacks
  • Diodes
  • TRRS cable
  • Reset buttons

Important Notes

  • The optional MCU sockets, Mill-Max hotswap sockets, rotary encoders are not included.
  • It doesn't support using with RGB LEDs.
  • The optional rotary encoders are available for purchasing separately.
  • You will need soldering tools to build this keyboard.
  • The cable for connecting the keyboard to computer is not included.

License: https://github.com/mmccoyd/hillside
