Pre-soldered Wireless HSHS46 (Hotswappable Hillside46) Split Keyboard

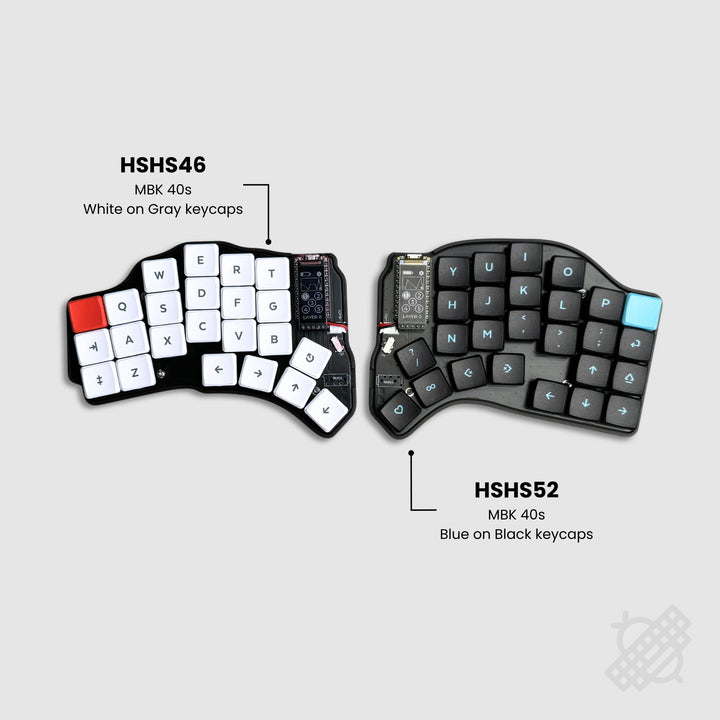

The HSHS46 (Hotswappable Hillside46) is a modified version of the Hillside46 keyboard, based on the original design by mmccoyd.

Features

• Wireless Hillside46 with Kailh Choc hotswap sockets.
• Splay Layout

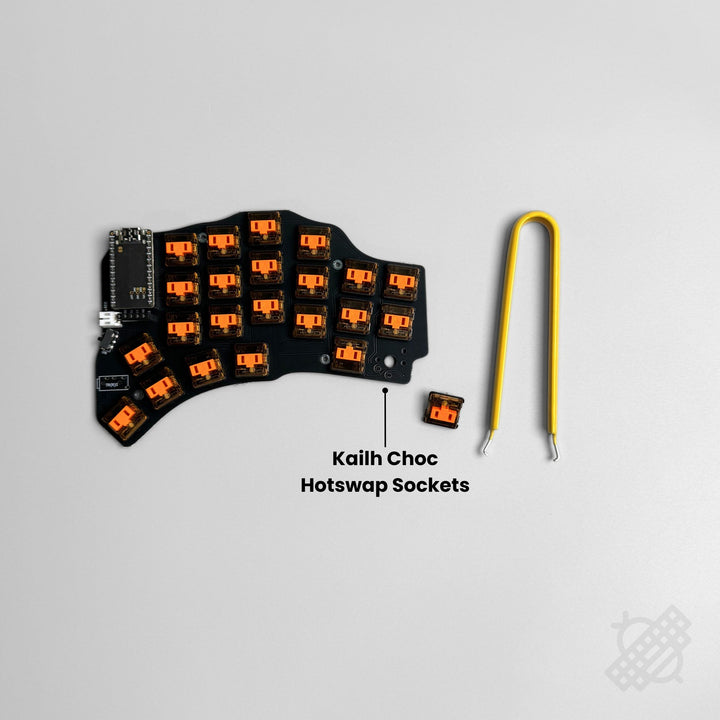

• Hotswap Sockets: Changing Kailh Choc v1 key switches anytime.

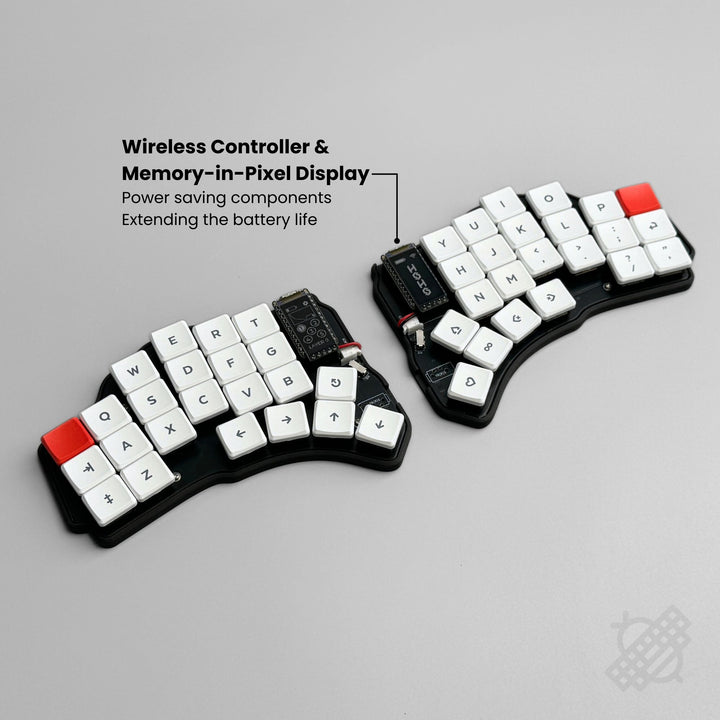

• (Optional) Memory-in-Pixel Display Support for enhanced functionality.

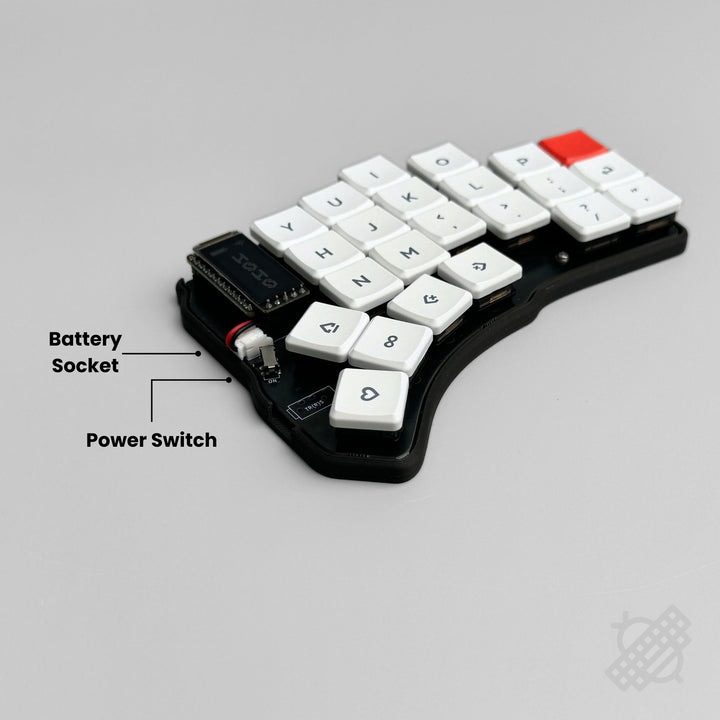

• Onboard JST Battery Sockets: No battery soldering required. Easily swap batteries when needed.
• Power Switch (On/Off): Save power by turning off the keyboard when not in use.
• Socketed MCU & Displays: Easily replace or reuse core components.
• Extra Battery Space: With the MCU sockets, the 401230 battery fits perfectly under the controller.

The pre-built Wireless HSHS46 keyboard includes

• Soldered PCB, including
  • Bluetooth controller (nice!nano v2) with MCU sockets
  • (optional) Sharp Memory-in-Pixel display with display sockets
  • diodes, choc hotswap sockets
  • battery sockets
  • power switches
  • reset buttons
• No soldering tool is required
• Pre-flashed ZMK firmware

Important Notes

• Battery Requirement: This keyboard does not ship with batteries. Please purchase a pair of 301230 or 401230 batteries with JST-PH connectors and the correct polarity from local stores.
• Wireless-Only: This is a wireless keyboard and cannot be used as a wired keyboard.
• Switch Compatibility: Supports Kailh Choc v1 / Choc v2 key switches only. Gateron Low Profile GLP key switches are not supported.
• No RGB Lighting: This keyboard does not include RGB LEDs.
• Rotary encoder is not supported.
• Firmware & Keymap Configuration:
  • Requires compiling ZMK firmware using command-line tools or GitHub Actions.
  • QMK and QMK Toolbox are not supported in this wireless version.
• DIY Assembly Required: Assembly of the case and keycaps must be done manually using a screwdriver.

Original Project & License: https://github.com/mmccoyd/hillside
