The pre-soldered board includes:

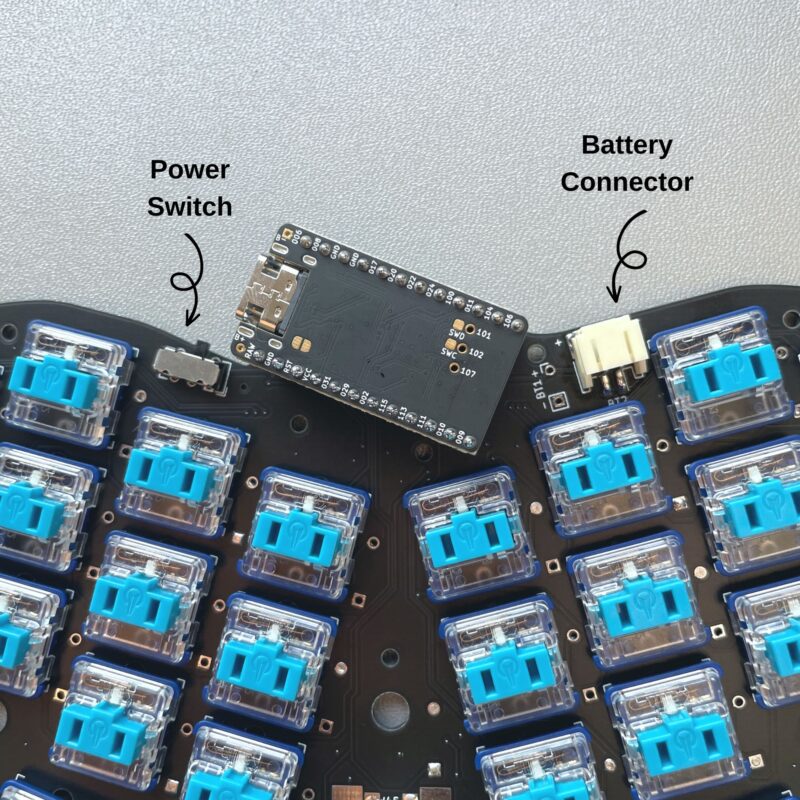

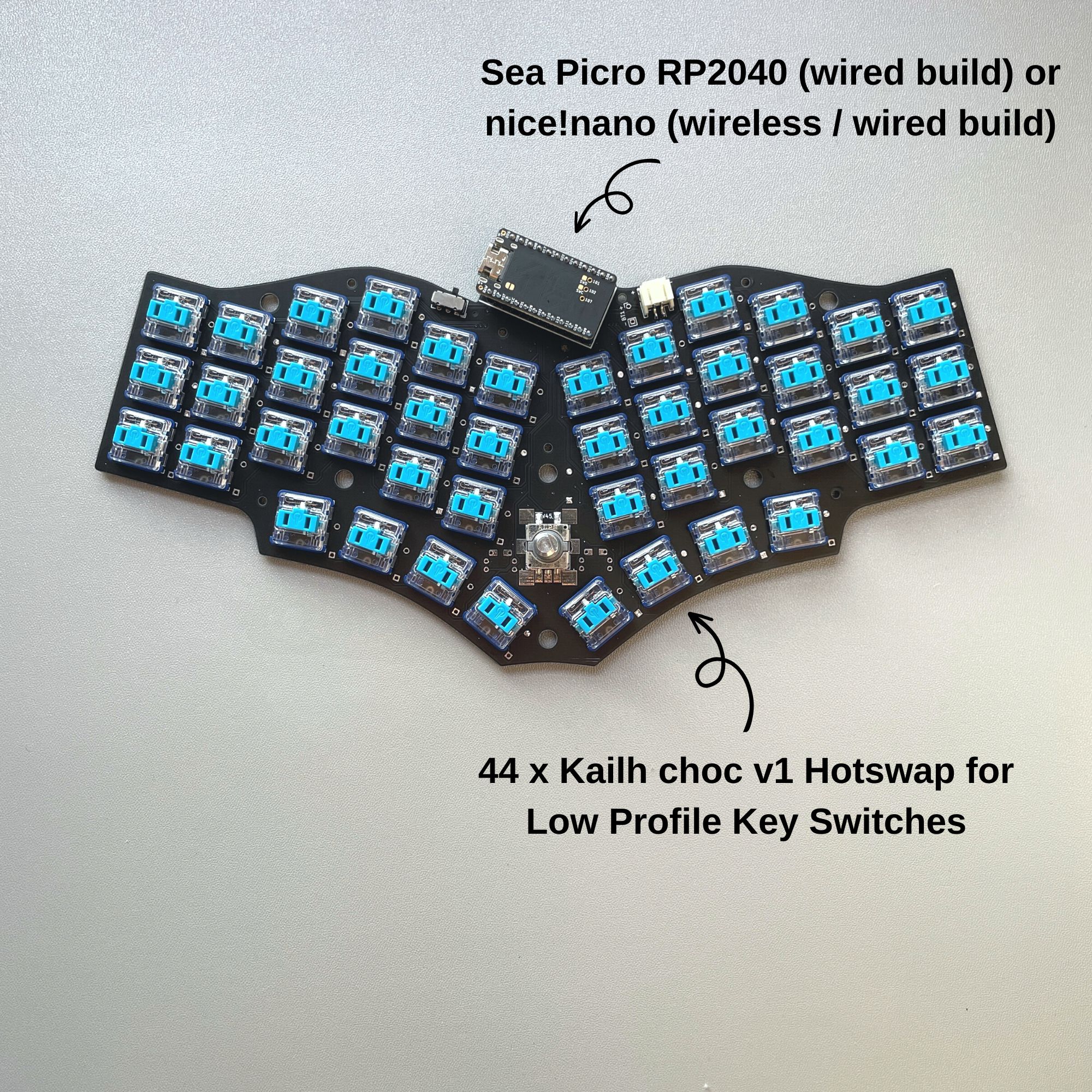

- The components (controller, battery socket, power switch, diodes, rotary encoder and hotswap sockets) are soldered on the PCB
- Sockets are added to the controller
- A aluminium (silver / black) rotary knob
- Pre-flashed with QMK (Sea Picro RP2040 controller) or ZMK (Bluetooth controller) firmware
The case includes:
- 3D printed switch plate (top plate)
- 3D printed bottom case
- Spacers and screws
- Rubber feet
Important note:
- Because I cannot ship batteries, please buy a pair of 301230 or 401230 batteries with JST-PH connectors and correct polarity from local stores.
Original Project & License: https://github.com/SlightHeadache/choctopus44
Volodymyr Patuta –
This keyboard is very well built. It looks much nicer irl than on photos xD The encoder is much nicer than on my sofle keyboard.
The case is easy to disassemble/assemble. Soldering job is perfect. Build quality is top level!
I’ve put a 301330 110 mAh battery. It fits perfectly under the controller, and I’ve found how to hide the cable nicely.
I had to spend some time to change all mappings, as I use colemak layout, and before I never used zmk. But it is a very straight forward process.
Overall, the keyboard is very good, it is a pleasure typing on this keyboard.
