Piantor 42 Keys Low Profile Split Keyboard DIY Kit
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
Features

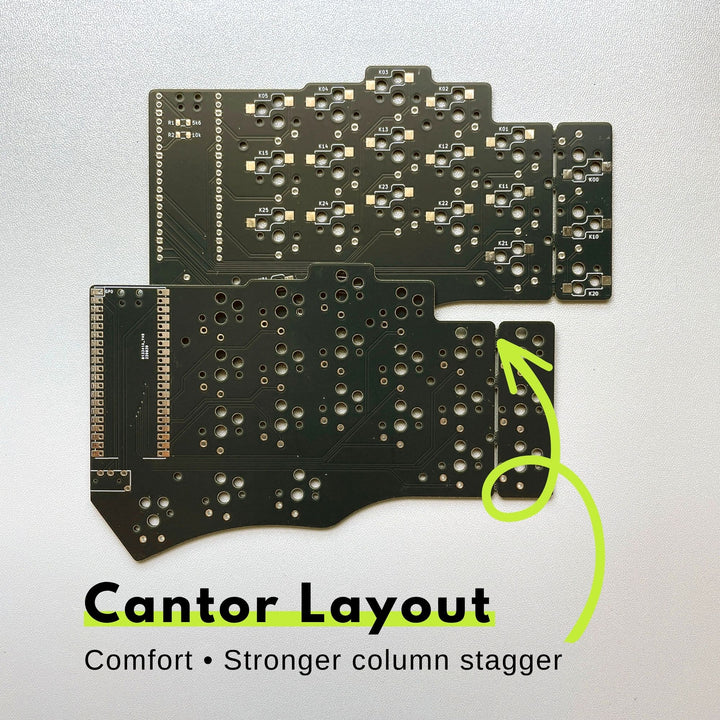

- using the same layout as Cantor – the stronger column stagger making typing more comfortable for those who have short pinkies like me

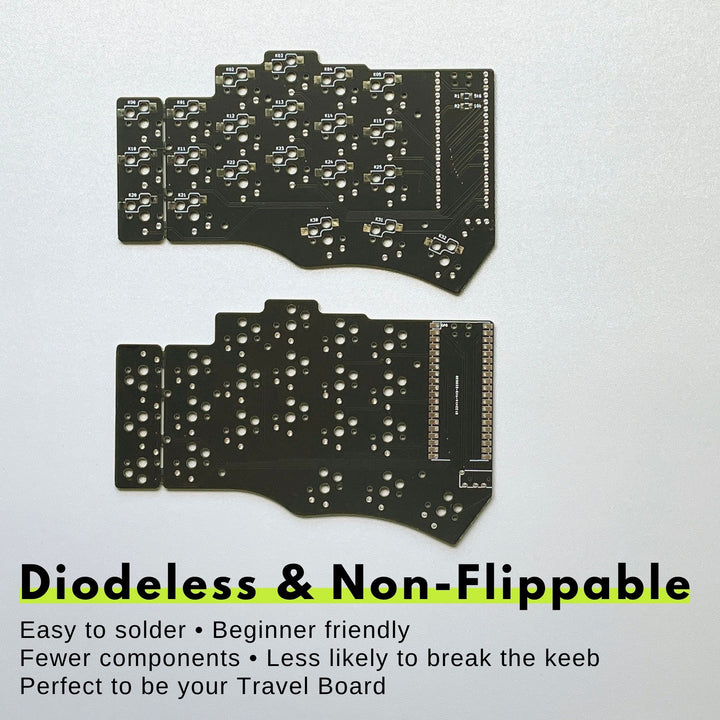

- diodleless & non-flippable – with the minimalist and error avoidance design, it can definitely be your first soldering project.

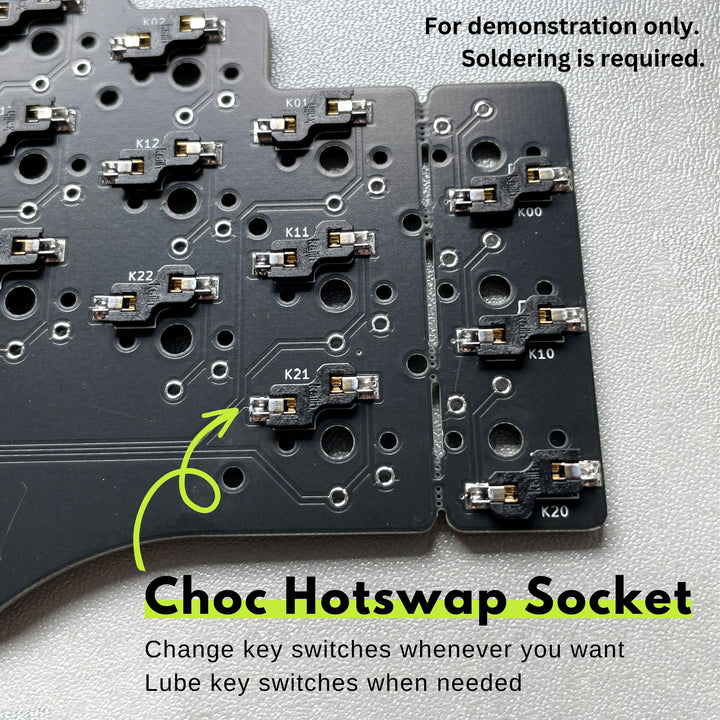

- soldered in / hotswappable key switches – with the choc hotswap sockets, you can change and lube Kailh Choc v1 key switches when needed

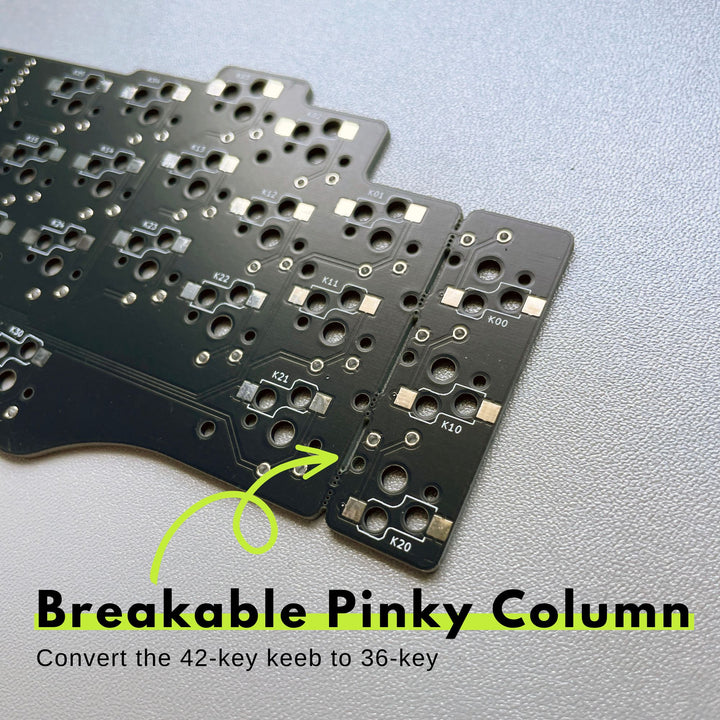

- breakable pinky column – you can convert the 42-key keyboard to a 36-key (same layout as Cantor Remix)

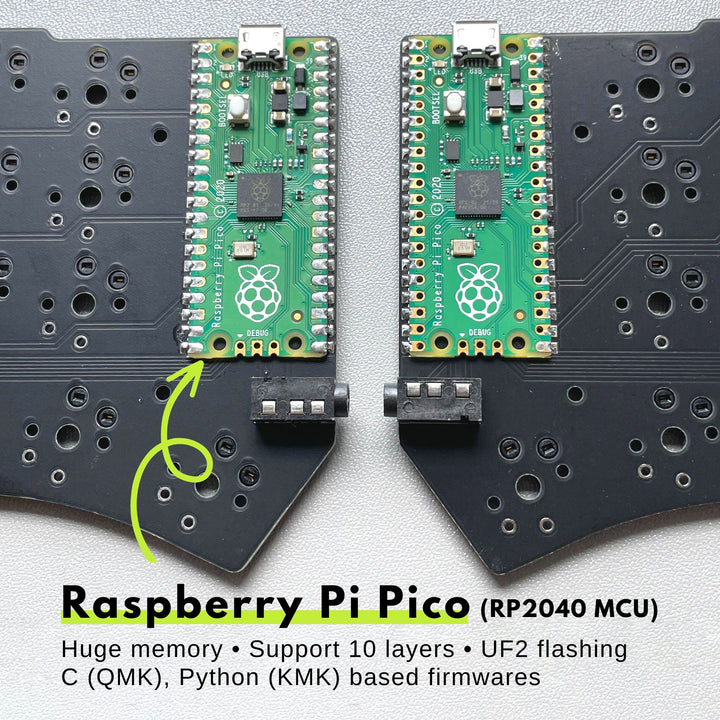

- RP2040 MCU (Raspberry Pi Pico / WeAct RP2040) – with huge memory in the controllers the keyboard can have 10 layers. You can also use the U2F flashing feature
- supports C (QMK) and Python (KMK) based firmwares
- programmable – you can use QWERTY, Colemak, Dvorak, Miryoku or any keymaps that you like

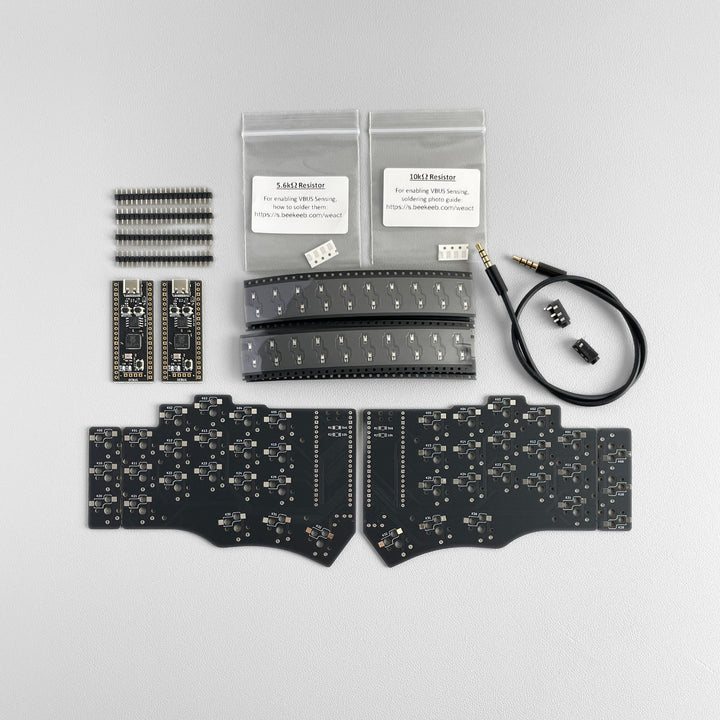

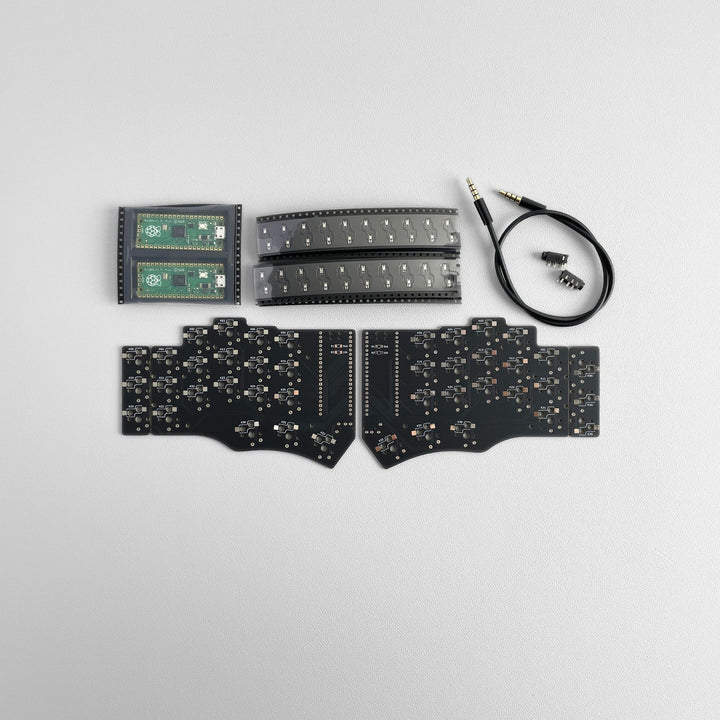

The Wired Piantor keyboard DIY Kit includes
- 2x PCBs
- 2x MCU Raspberry Pi Pico (Micro-USB 2MB Flash Memory) / WeAct RP2040 (USB-C 2MB Flash Memory)
- (Optional) Pin header for WeAct RP2040 MCU
- (Optional) Resistors for WeAct RP2040 MCU
- 2x TRRS Jack
- 42x Kailh hotswap sockets
- 1x TRRS cable
Important Notes:
- Don’t connect or disconnect the TRRS cable when the keyboard is powered. Always disconnect the USB cable first.
