Pre-soldered Piantor Pro 36 Keys RP2040 Low Profile Choc Split Keyboard
This keyboard PCB comes without key switches, keycaps, and cases.
To build a complete keyboard, please select the necessary add-ons from the options below.
To build a complete keyboard, please select the necessary add-ons from the options below.
Have questions? Email support@beekeeb.com
Description
The feature of Piantor

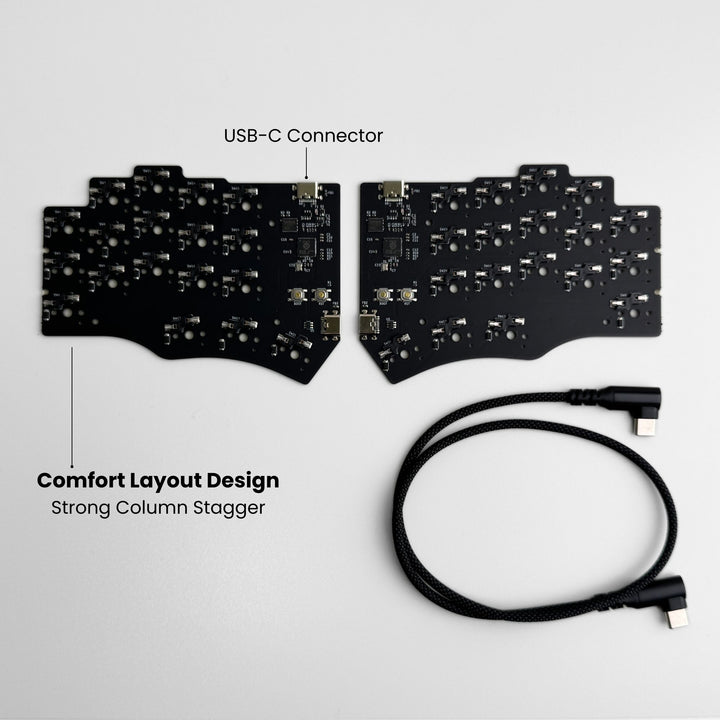

- using the same layout as Cantor – the stronger column stagger making typing more comfortable for those who have short pinkies like me
- hotswappable key switches – with the choc hotswap sockets, you can change and lube Kailh Choc v1 key switches when needed
- RP2040 MCU – with huge memory in the controllers the keyboard can have 10 layers. You can also use the U2F flashing feature
- supports C (QMK) and Python (KMK) based firmwares

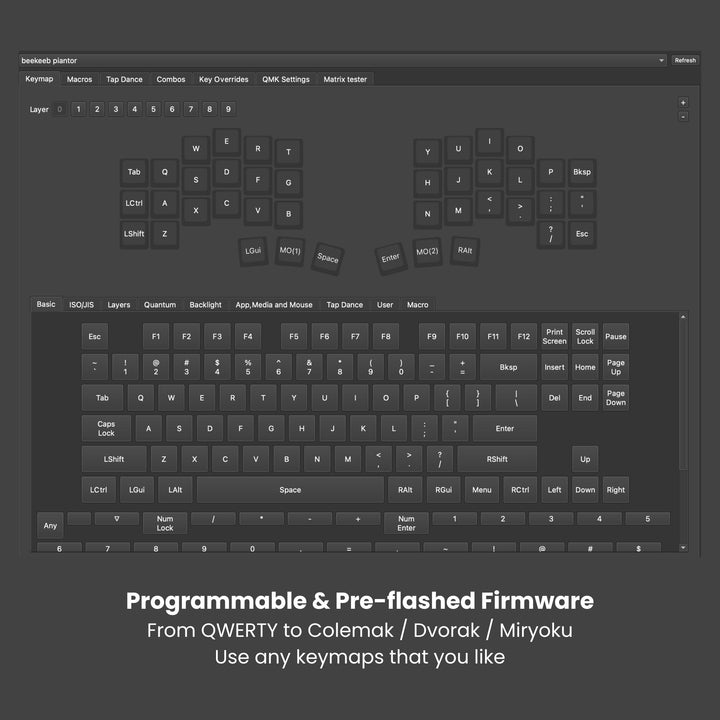

- programmable split keyvoard – you can use QWERTY, Colemak, Dvorak, Miryoku or any keymaps that you like
The new Piantor Pro

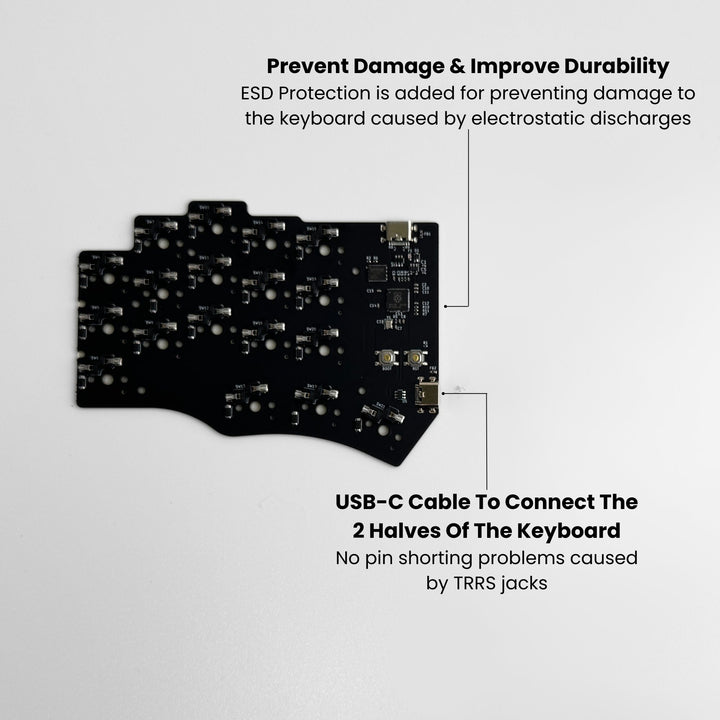

- onboard ESD protections: The chip and USB-C connectors now have built-in electrostatic discharge (ESD) protections, offering increased safety and preventing potential damage.
- short circuit prevention: The two halves of the board are connected using a USB-C to USB-C cable, ensuring there are no short circuits. The cable will be included in the parcel.
- 16MB Flash Memory: All board are equipped with 16MB flash memory.

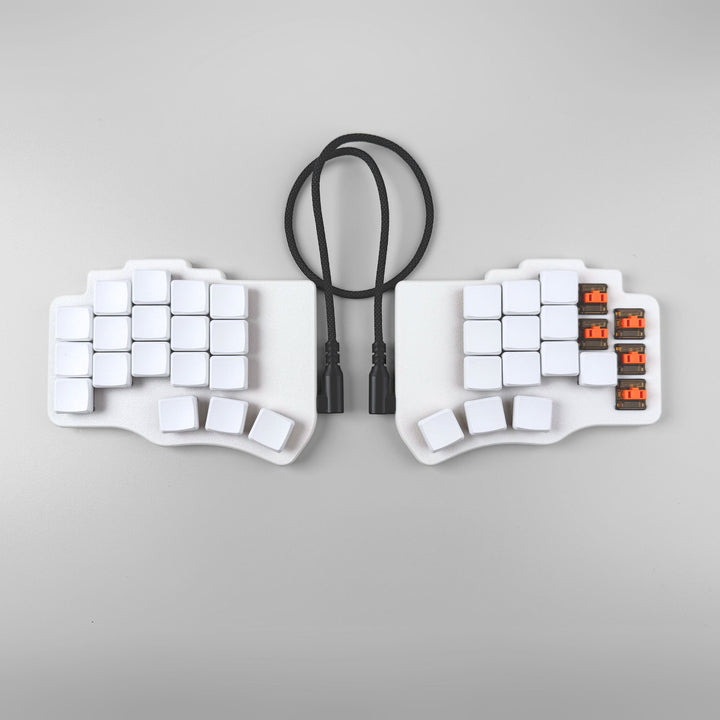

- eliminating the previous exposed component design: The new case fully covers and protects all the board’s components.
- the keyboard with the new case is approximately 5% lower in total height compared to v1.
The prebuilt Piantor Pro keyboard
- No soldering tool is required. You do not need to solder any component to the board.
- A USB-C to USB-C cable for connecting the 2 halves of the keyboard will be included.
- Preflashed with VIAL firmware.
Important
- You will need a data USB-C cable to connect the keyboard to your computer.
