Crkbd v3.0.1 PCB with Parts Kit
- Left and right side PCBs
- 2x Sea Micro (USB-C) Controller

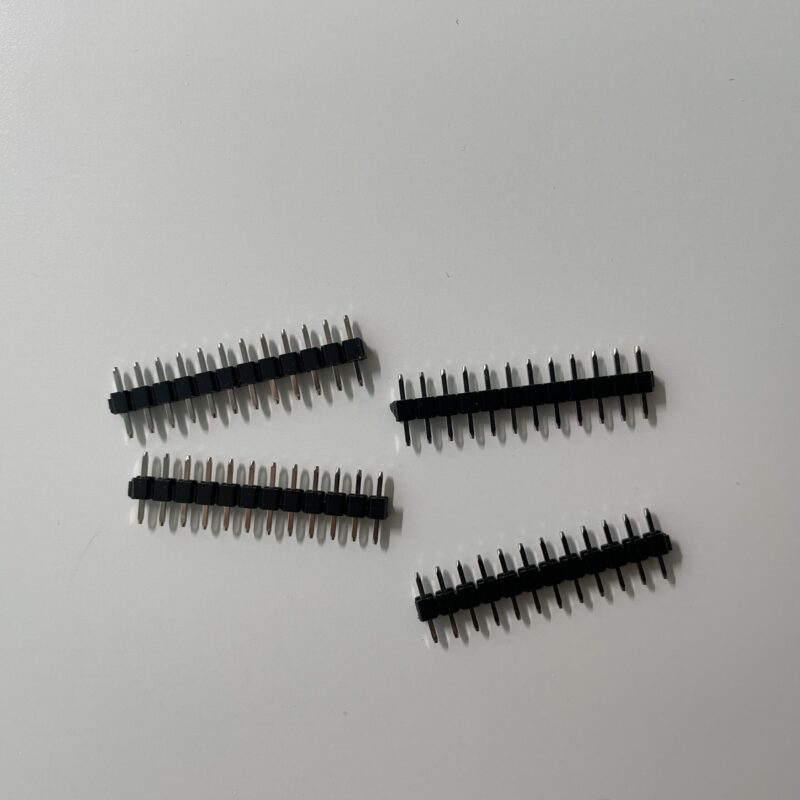

- 4x Custom-made low profile 12P pin headers
- 42x SMD Diodes
- 42x Gateron or Kailh hotswap sockets for MX

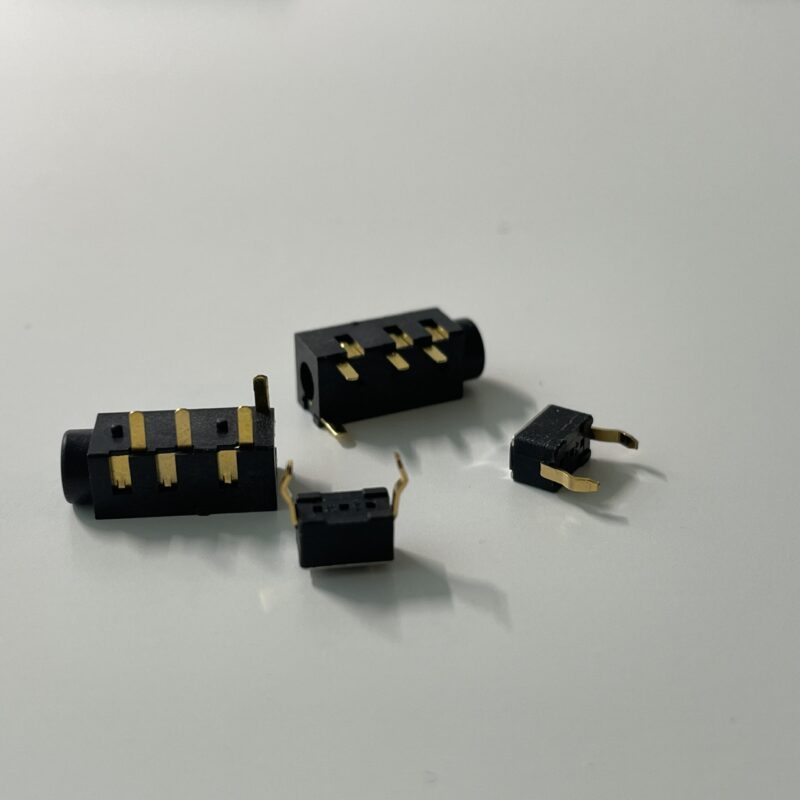

- 2x TRRS jacks PJ-320A
- 1x TRRS Cable
- 2x Reset tactile switches (6mm*3mm)
- 2x 0.91 OLED Displays
- 42x Per key switches RGB LEDs SK6812MINI-E 3228
- 12x Underglow RGB LEDs WS2812B-5050
Case includes:
- Black carbon fiber top plate
- Clear (transparent) acrylic bottom plate
- Clear (transparent) OLED acrylic cover
- M2 spacers
- M2 screws
- Silicone rubber feet
* You will need to buy keycaps, and key switches separately.
Soldering Service
- Soldering is not required if you add this service
- There might be some no-clean flux residues
Custom order
- If you have a special request, please message me for a custom order
Important notes
- You’ll need to buy a case, key switches and key caps separately
- You will need to solder this by yourself if you do not add the soldering service
Corne Cherry v3.0.1 PCBs by foostan
License and Source files: https://github.com/foostan/crkbd
Build Guide (in Japanese): https://github.com/foostan/crkbd/blob/master/corne-cherry/doc/v3/buildguide_jp.md
QMK firmware: https://github.com/qmk/qmk_firmware/tree/master/keyboards/crkbd
Via is also supported.
